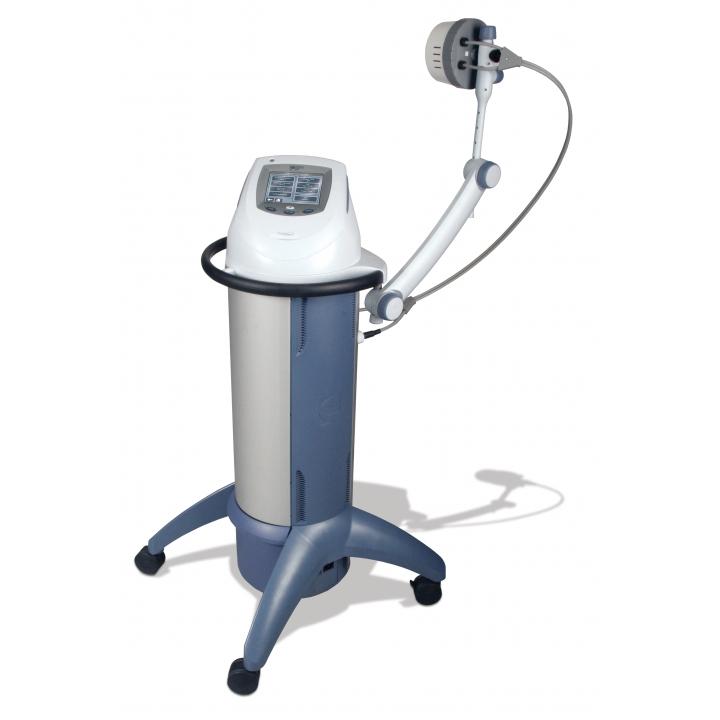

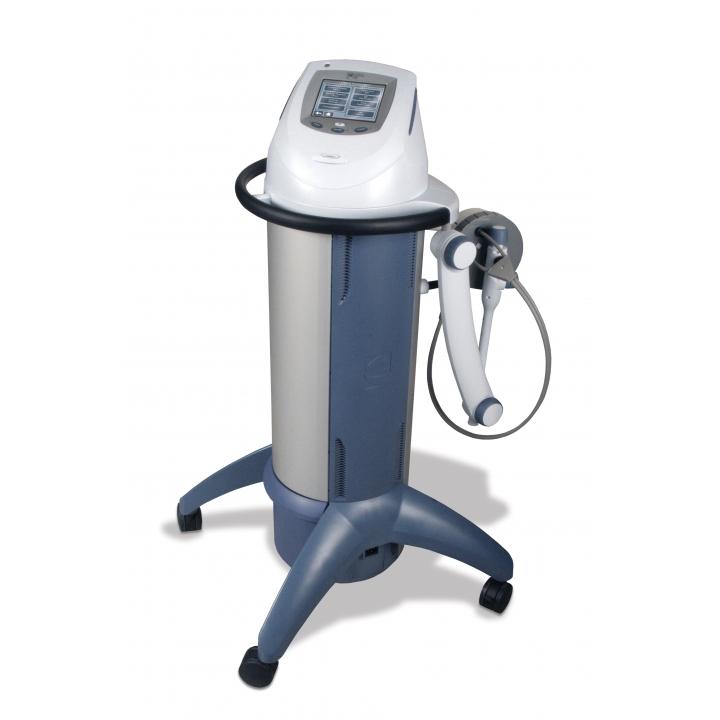

Intelect SWD100 Shortwave Diathermy
- The Intelect SWD100 offers the ground-breaking innovations you’ve come to expect from Chattanooga with the safe, effective deep tissue heating therapy of shortwave diathermy.
- With full-color touch-screen interface, onboard clinical resources, customizable treatment parameters and more, the Intelect SWD100 is remarkably intuitive and easy to use.
- Quickly begin treatment with one touch to the home screen and then pressing “start.”
- Ideal for: pain relief, reduction of muscle spasm, decreasing joint stiffness, contractures, increased blood flow.
The Intelect SWD100 Short Wave Diathermy Unit is designed to offer unattended dry heat therapy to increase circulation and range of motion while decreasing pain and inflammation.
Short Wave Diathermy produces high frequency, oscillating electromagnetic energy for easy tissue absorption and increased cellular metabolism for exceptional healing. The SWD 100 provides several intuitive, easy to use features to improve user interfacing and patient response.
The Chattanooga Shortwave 100 offers a full-color LCD touch-screen interface for quick and easy program selection. The Chattanooga SWD 100 offers multilingual software and over 90 clinical protocols on board as well as thermal dosimetry and quick-link indications for a wide variety of treatment setup options. The Intelect 100 also features 200 user-defined protocol storage slots for improved personalization of patient treatment.

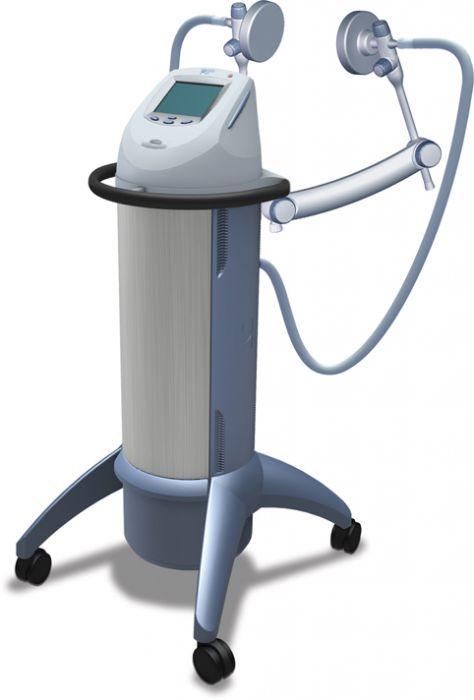

The Intelect Short Wave Diathermy Unit is designed to accept a variety of both inductive and capacitive electrodes. Capacitive electrodes are characterized by using two applicator electrodes on both sides of the area of treatment. Capacitive applicators are indicated for use with superficial bodily areas such as knees and elbows.
Inductive applicators are characterized by the use of a single electrode drum and are positioned directly over the area of treatment. Inductive electrodes are indicated for use with deeper soft tissue injuries such as neck and back strains and sprains.
Dimensions: 51.25" x 27.75" x 26.75"
Weight: 87 lbs.
- Inductive drum (Monode)
- Connection cable
- Indicator tube
- CD manual
