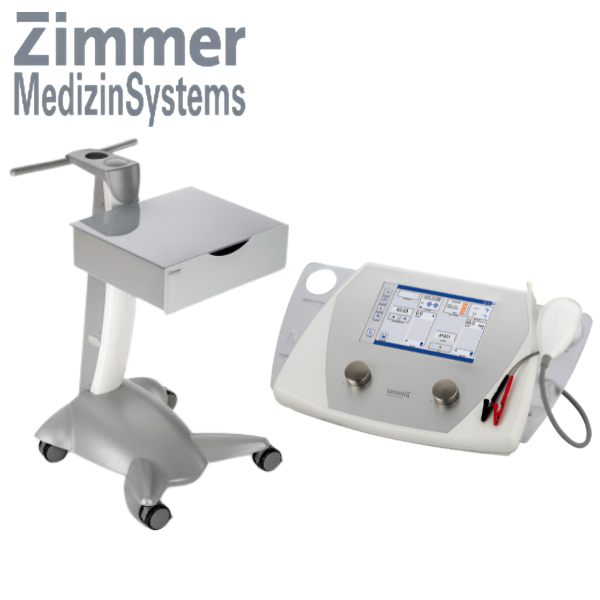

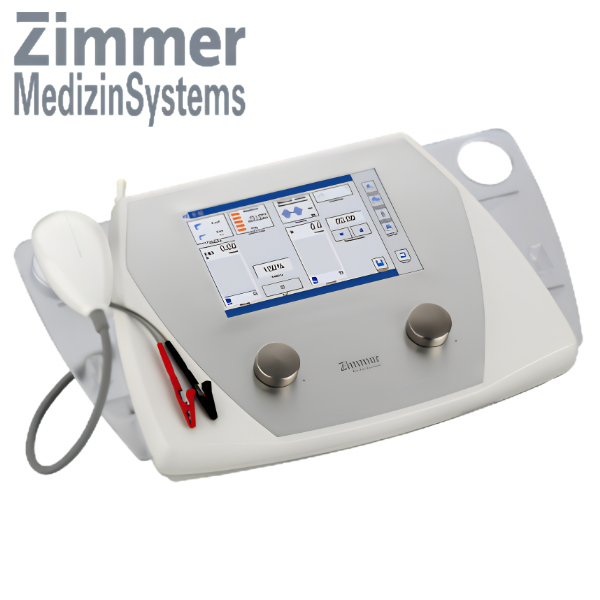

Zimmer MedizinSystems Soleo SonoStim Ultrasound and Electrotherapy Combination Device

The Soleo SonoStim Ultrasound and Electrotherapy Combination Device is a professional rehabilitation system that combines therapeutic ultrasound, electrotherapy, and simultaneous combination therapy within a single compact platform. Designed for physical therapy clinics, sports medicine facilities, chiropractic practices, orthopedic rehabilitation centers, outpatient therapy providers, and performance recovery programs, Soleo SonoStim delivers advanced treatment flexibility through multi-frequency ultrasound technology, dual-channel electrotherapy, customizable treatment protocols, and an intuitive touchscreen interface. The system enables clinicians to perform ultrasound therapy, electrotherapy, or combined treatment protocols from a single device, helping streamline workflow while expanding treatment capabilities.

Ultrasound, Electrotherapy, and Combination Therapy in One System

Soleo SonoStim integrates three commonly utilized physical medicine modalities into a single clinical platform. Healthcare providers can perform standalone ultrasound treatments, standalone electrotherapy sessions, or simultaneous combination therapy protocols that incorporate both modalities during treatment. This flexibility allows clinicians to tailor rehabilitation programs according to patient presentation, treatment goals, and clinical preferences.

Common clinical applications include:

• Musculoskeletal rehabilitation
• Pain management programs
• Sports injury recovery
• Muscle rehabilitation
• Neuromuscular re-education
• Orthopedic rehabilitation
• Physical therapy treatment programs
• Performance recovery protocols

Patented Multi-Frequency Ultrasound Technology

One of the system's most distinctive features is its patented SonoSwing technology. Unlike many traditional ultrasound systems that require clinicians to choose a single treatment frequency, Soleo SonoStim allows simultaneous use of both ultrasound frequencies through the same applicator, with adjustable ratios between frequencies. This provides greater control over treatment depth and energy distribution throughout the treatment area.

The ultrasound system features:

• Multi-frequency ultrasound technology
• 0.8 MHz frequency for deeper tissue applications
• 2.4 MHz frequency for more superficial applications
• Adjustable frequency blending through SonoSwing
• Continuous and pulsed ultrasound modes
• Maximum ultrasound output of 3 W/cm²
• Multi-frequency ergonomic applicator design

This advanced ultrasound capability allows clinicians to customize treatment delivery based on anatomical location and therapeutic objectives.

Dual-Channel Electrotherapy Platform

Soleo SonoStim incorporates a fully integrated two-channel electrotherapy system with independently controlled channels, allowing clinicians to customize treatment parameters for multiple treatment areas simultaneously. The system supports a broad range of stimulation protocols commonly utilized in rehabilitation and physical medicine settings.

Available electrotherapy waveforms include:

• Monophasic stimulation
• Biphasic stimulation
• TENS therapy
• Interferential current therapy
• Premodulated interferential stimulation
• Medium-frequency stimulation
• High-voltage stimulation
• Microcurrent therapy

The independent channel architecture allows separate adjustment of programs, intensities, and treatment parameters for enhanced clinical flexibility.

Simultaneous Combination Therapy

Soleo SonoStim is specifically engineered to deliver simultaneous ultrasound and electrotherapy treatments through integrated combination therapy programs. The platform includes pre-configured treatment protocols that allow clinicians to efficiently combine both modalities within a single treatment session when appropriate for patient care plans.

Benefits of combination therapy functionality include:

• Expanded treatment flexibility
• Streamlined rehabilitation workflows
• Efficient treatment delivery
• Customizable therapy protocols
• Individualized patient care
• Broad clinical applicability

Large Color Touchscreen Interface

The system features a professionally designed color touchscreen interface that provides direct access to treatment programs, parameter controls, and patient-specific settings. All treatment parameters remain visible throughout operation, helping clinicians efficiently manage therapy sessions while maintaining complete control over treatment delivery.

Interface advantages include:

• Intuitive touchscreen navigation
• Fast treatment setup
• Simplified program selection
• Easy parameter adjustment
• Streamlined workflow integration
• Enhanced clinical efficiency

Extensive Treatment Guide and Protocol Library

Soleo SonoStim incorporates an extensive treatment guide with more than 300 treatment recommendations organized by anatomical references and clinical indications. The built-in library assists healthcare professionals with treatment selection while supporting consistent protocol implementation across a wide variety of rehabilitation applications.

The integrated protocol system supports:

• Acute pain treatment programs
• Chronic pain management protocols
• Muscle rehabilitation programs
• Sports rehabilitation applications
• Neuromuscular re-education
• Individualized treatment planning

FastPath Customization and Patient Memory Storage

The system includes FastPath functionality, allowing clinicians to quickly access preferred treatment protocols and customized settings. Patient-specific programs and individualized treatment parameters can be stored on the integrated SD memory system for efficient future access and treatment consistency.

Memory features include:

• Custom protocol storage
• Favorite program access
• Patient-specific treatment settings
• SD card memory system
• Up to 120 stored memory entries
• Workflow optimization tools

Advanced Ultrasound Applicator with Coupling Feedback

The included ergonomic ultrasound applicator incorporates both visual and audible coupling feedback systems designed to help clinicians maintain optimal contact during treatment. A visual coupling light indicates appropriate contact conditions, while the display provides real-time feedback regarding energy transfer efficiency.

Applicator features include:

• Ergonomic treatment head
• Coupling light feedback
• Audible coupling indicators
• Real-time contact monitoring
• 5 cm² applicator included
• Optional 1 cm² applicator availability

Technical Specifications
