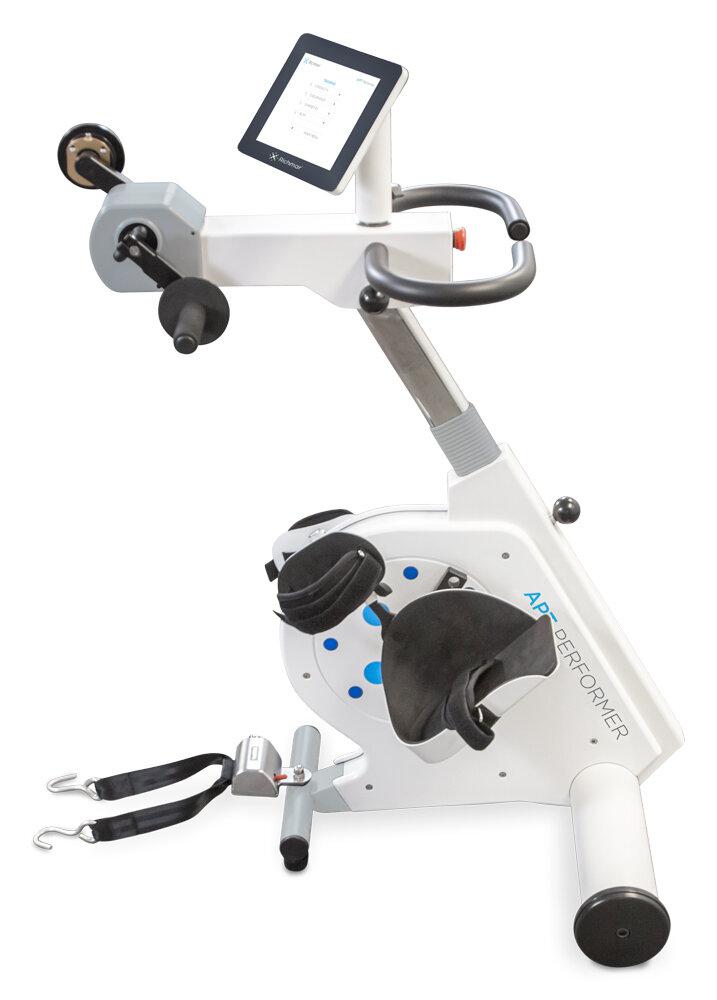

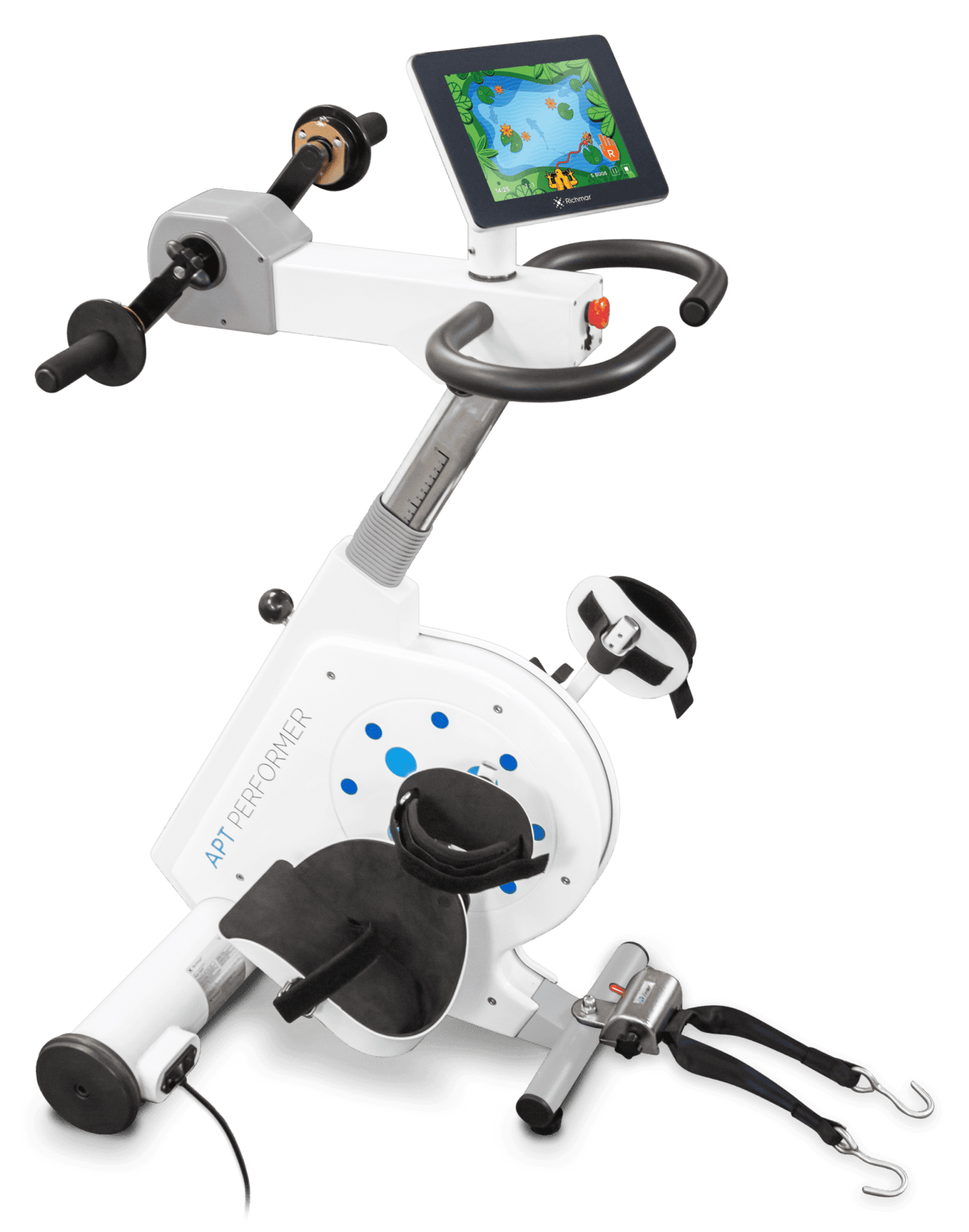

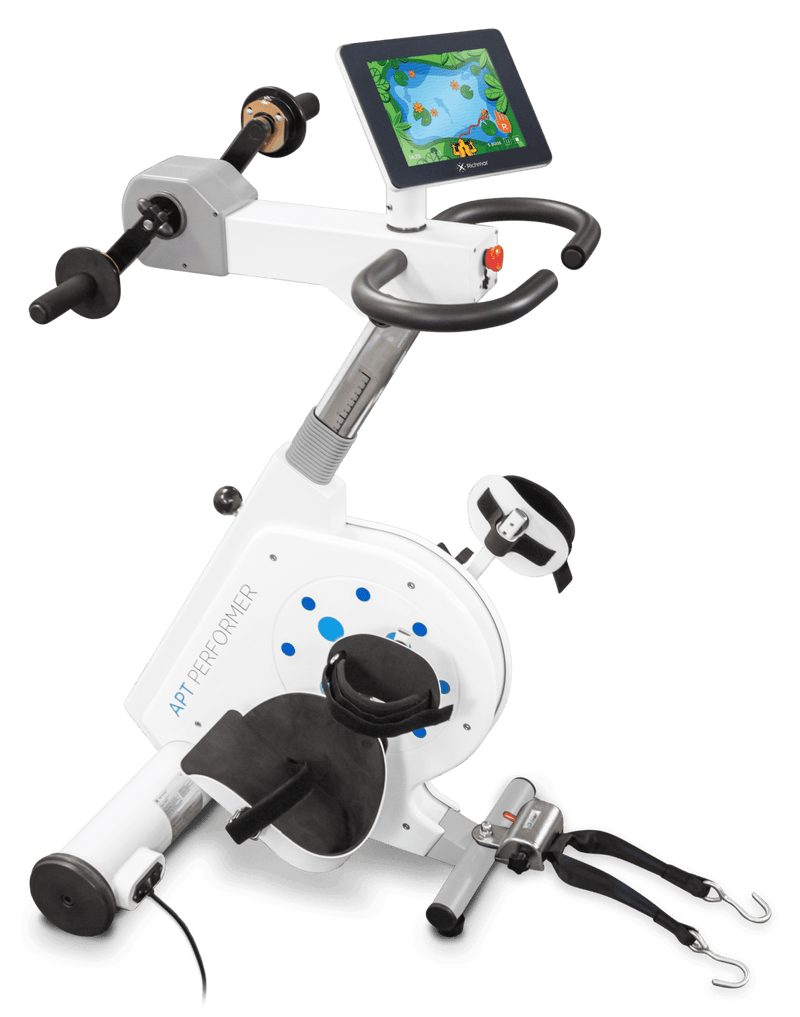

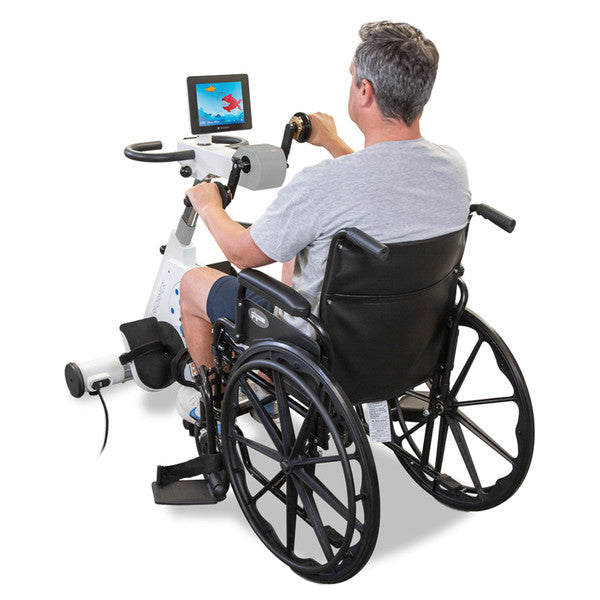

Richmar APT Performer - Active Passive Trainer


The APT Performer by Richmar presents the latest innovation and improvement in active passive trainers on the market, bringing a design focus for patient motivation. It is a multifaceted rehab training device for upper and lower extremities with simple-to-use features that benefit both patients and clinicians.

With the intended goal of improving functional outcomes by enhancing strength and coordination, and ultimately restoring the ability of patients to participate in their regular daily activities, the APT Performer includes industry-standard strength and symmetry training modes for upper and lower extremities, and is also the first-and-only active-passive trainer available anywhere to incorporate fine motor skills training, allowing clinicians to assess patient progress in a whole new way.

The most innovative Active Passive Trainer designed to motivate patients in a fun and engaging way to get moving again is here. The APT Performer by Richmar is a training device that is used for rehabilitation of upper and lower extremities with new and improved features that benefit both patients and clinicians.
Key Points:
  • Simple-to-use interface for quick training setup
  • Unique, engaging gameplay for all training programs:
    • Symmetry Training guides bilateral balance of muscle strength and coordination
    • Strength Training aims to improve muscle conditioning with set force production goals
    • Endurance Training encourages patients to increase their longevity of exercise output
    • ROM Training maintains muscle and soft-tissue pliability, improves joint mobility, and helps prevent muscle atrophy
    • Fine Motor Training measures hand-eye coordination on the basis of reaction time and accuracy (available for upper extremities only)
  • Biofeedback prompts include:
    • Auditory and visual feedback during training
    • On-screen treatment summary
    • HIPAA-compliant summary download to USB
  • Intelligent Spasm Detection with adjustable settings for spasm-recognition and remediation based on the Modified Ashworth Scale (MAS)
  • Automatic active-passive safety control with adjustable passive threshold
  • Treatment parameters can be customized and saved for future use
  • Wi-Fi and Bluetooth Heartrate Monitor Connection Capability (compatible with Polar H10 Sensors, not included)
  • Bright, 8” color touch screen that tilts and rotates for viewing ease and comfort
  • Upper extremity handles and pedal rotate 180° for adjustment according to therapy being used

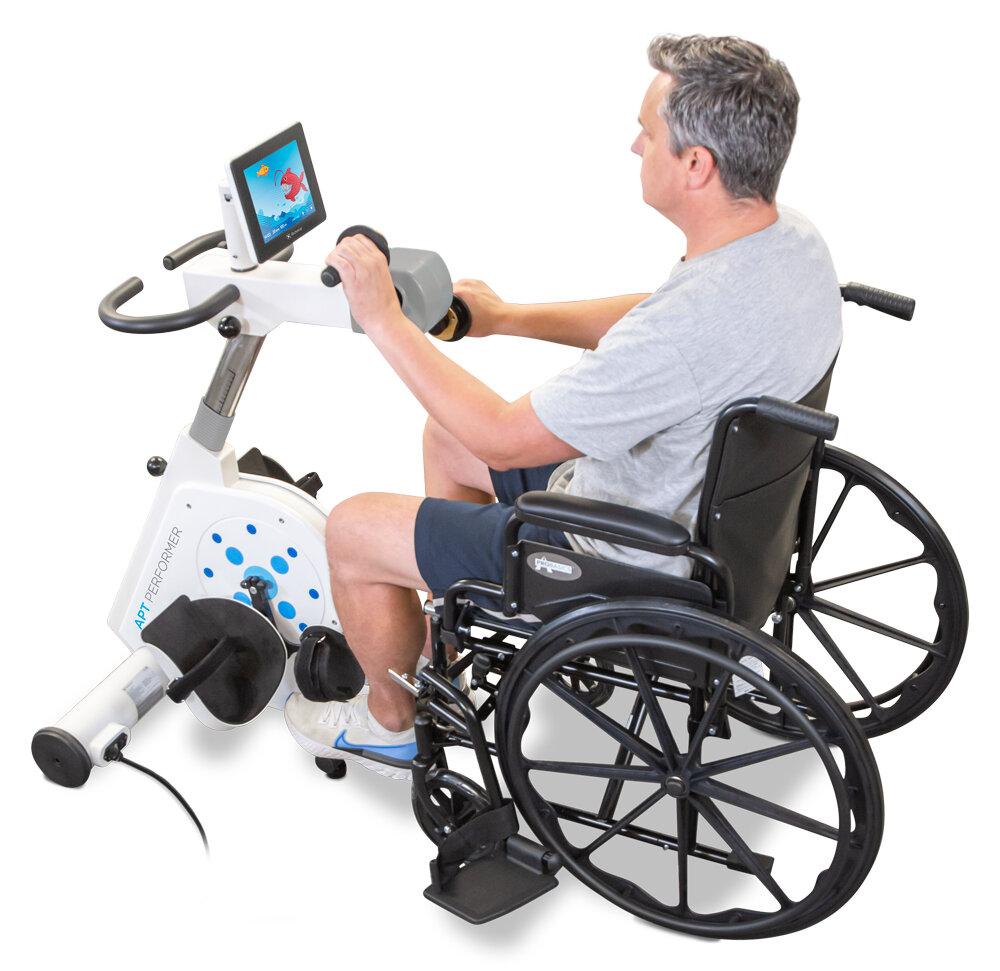

  • Includes anti-tip wheelchair hooks and straps for upper and lower extremities
  • Height adjustable; wheels for easy transport
  • Two year manufacturer warranty

Intended Use:
The APT Performer is a rehabilitative training that is suitable for the active and passive movement of a person’s lower and upper extremities, and is designed for use within the therapeutic and rehab clinic or hospital setting by a trained practitioner.

It has 3 training modes: Arm Training, Leg Training, Fine Motor

Arm & Leg Training Modes each have 4 Training Programs: STRENGTHENDURANCESYMMETRYROM

Contraindications:
  • Patients with the following conditions should not use the APT Performer:
    • Ligaments, knees or joint ruptures
    • Post-osteoporosis
    • Crippled limbs
    • Severe spasticity or stiffness in the limbs
    • Acute thrombosis
    • Pregnancy
    • Patients where vital signs are unstable, such as those with severe pulmonary dysfunction
    • Extremity tumors
    • Internal fixation fracture is unstable
    • Broken limbs
    • Mental disorders
    • Other patients that are not able to express their own feelings or that a physician feels is not suitable to use this device.

Technical Specifications:
  • GENERAL
    • Dimensions: 28" (W) × 30" (L) × 42" (H)
    • Standard Weight: 102 lbs
    • Interface: 8" touch screen
    • Expected Useful Life Time: 5 years
    • Software Release Version: A
  • SAFE WORKING LOAD
    • UE Pedals (total): 11 lbs
    • LE Pedals (total): 22 lbs
  • ADJUSTABLE RANGE
    • Supporting Module: 0" - 5.90"
    • Handlebar: 180°
    • Display (max.): 270°- 360°
  • ROTATION RADIUS
    • UE Pedal: 3.94"
    • LE Pedal: 2.64"
    • Rotate Speed: 5 - 60 r/min
    • Resistance Levels: 0 - 24
    • Spasm Level: 1 - 5
    • Spasm Relief Rate: 1 - 5
    • Timer (duration time): 1 - 60 min
  • ELECTRICAL
    • Power Supply: AC 100-240V, 50-60Hz
    • Rated Power: 160 VA
    • Mode of Operation: Continuous
    • System of Protection: Class I, Type B Applied Part
    • Ingress Protection: IPX0
    • Fuse (Main part): T2AL250V (?5×20mm)
  • OPERATION AND STORAGE CONDITION
    • Environmental Conditions of Operation:
      • Temperature: 5 to 40°C
      • Relative Humidity: =80%
      • Atmosphere Pressure: 86 to 106kPa
    • Environmental Conditions of Transport and Storage:
      • Temperature: -20 to 55°C
      • Relative Humidity: =93%
      • Atmosphere Pressure: 86 to 106 kPa
