Optiflex S Shoulder CPM - US MED REHAB

Optiflex S Shoulder CPM

$7,981.95

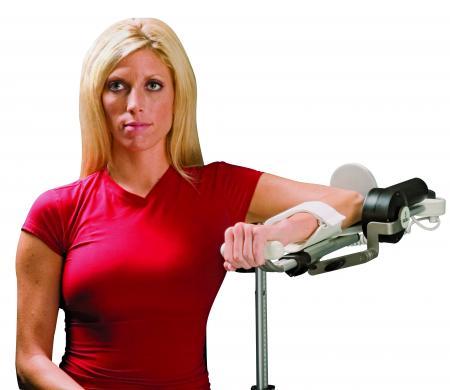

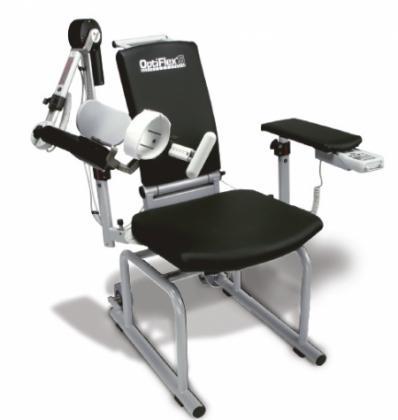

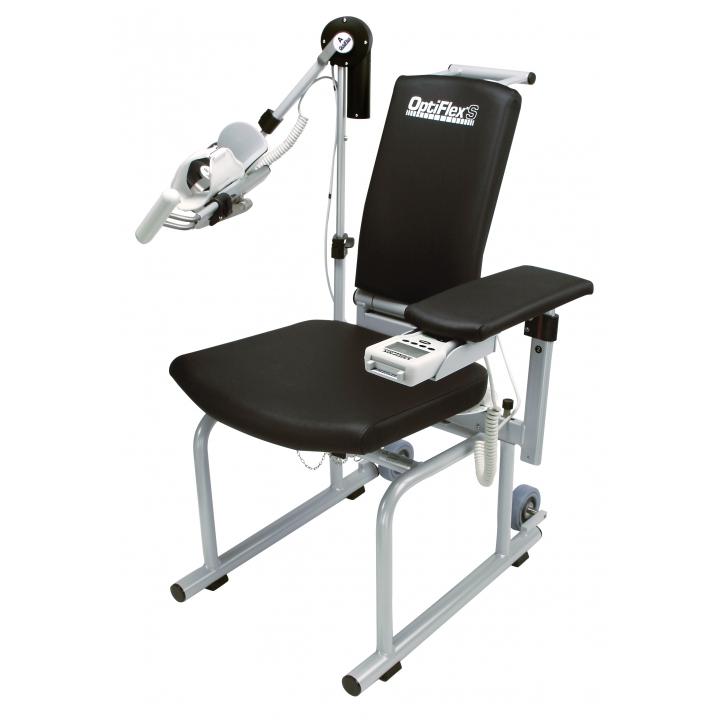

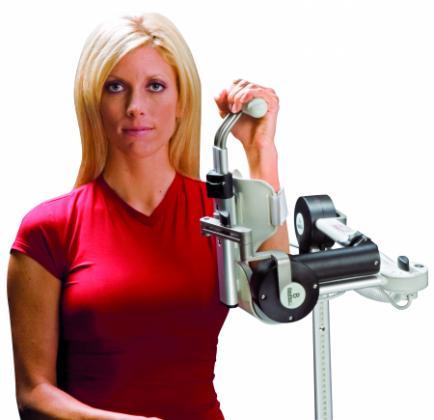

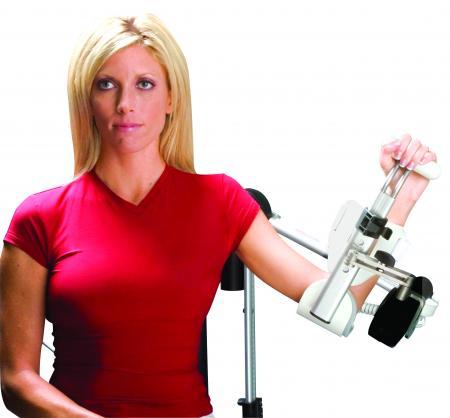

Designed to provide anatomical motion for the shoulder, the OptiFlex S addresses a complete range of motion capabilities.

  • Easy-to-use hand control for storing treatment data on memory chip card
  • Fully synchronized motors allow treatment parameters to be customized to meet patient’s specific therapy protocols
  • Ergonomic rest for healthy arm and fully adjustable chair
  • Patented Universal left/right Shoulder design

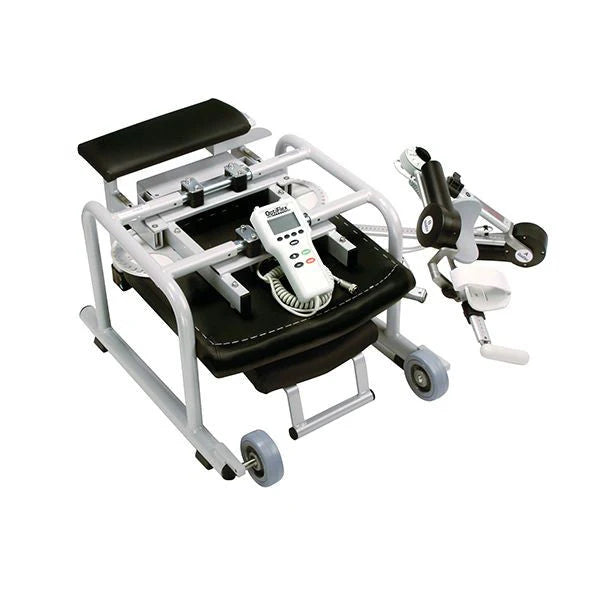

  • Folds easily for transport/shipping
  • Includes patient data card and erasable pen
  • Lightweight design weighs 55 lbs (25 kg)
  • Easy-to-use hand control for storing treatment data on memory chip card
  • Fully synchronized motors allow treatment parameters to be customized to meet patient’s specific therapy protocols
  • Ergonomic rest for healthy arm and fully adjustable chair
  • Patented Universal left/right Shoulder design
  • Folds easily for transport/shipping
  • Includes patient data card and erasable pen
  • Lightweight design weighs 55 lbs (25 kg)
  • nchronized motors allow for customization of treatment parameters (optional to turn on/off)
  • Patented universal left/right design for easy conversion
  • Fully adjustable ergonomic chair that promotes shoulder stabilization
  • Seat height: 48cm
  • Brushless DC motor
  • Pendant control with chip card technology to store and assign patient information
  • Quick and easy disassembly for transport and shipping
  • Range of Motion:
  • Adduction/Abduction: 0-30-175º
  • Internal/External Rotation: 90-0-90º
  • Flexion/Elevation: 0-30-175º
  • Horizontal Adduction/ Abduction: 0-0-125º
  • Functions:
  • Motor Control: ON/OFF
  • Pauses: 0-30 seconds
  • Speed: 0-100%
  • Timer: 0-300 minutes
  • Synchronization: ON/OFF
  • Therapy Run Time: hours/minutes
  • Program Features
  • Warm-up mode – the unit recognizes the start and stop angles and midpoint. From that point, motion is initiated 3 degrees from all angles until full ROM is achieved
  • Reverse-on-load – unit will switch to the opposite direction when patient resistance exceeds the set value
  • Patient data storage – assigns ROM, speed and treatment times per patient and notes patient set up positions
  • Patient compliance meter – calculates the cumulative patient usage time
  • Soft start and stop
  • Multi-lingual pendant display
