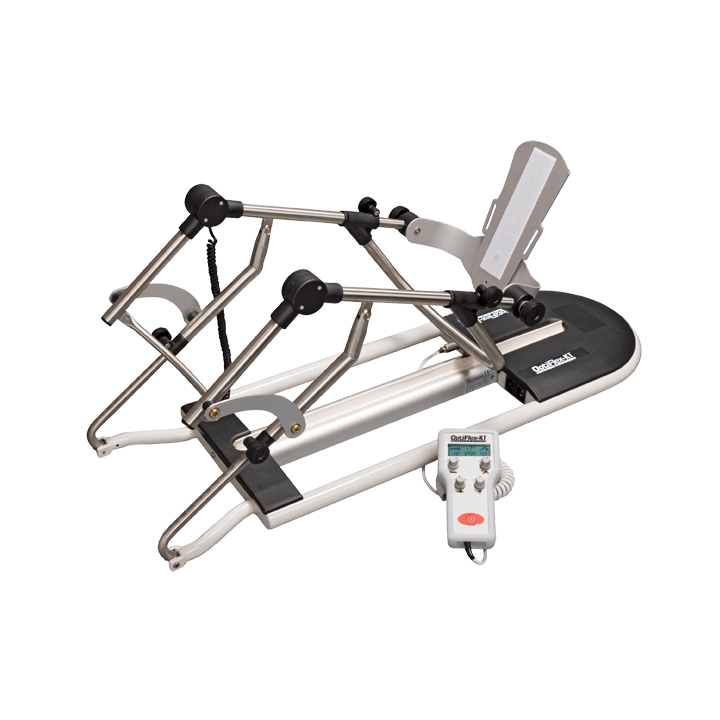

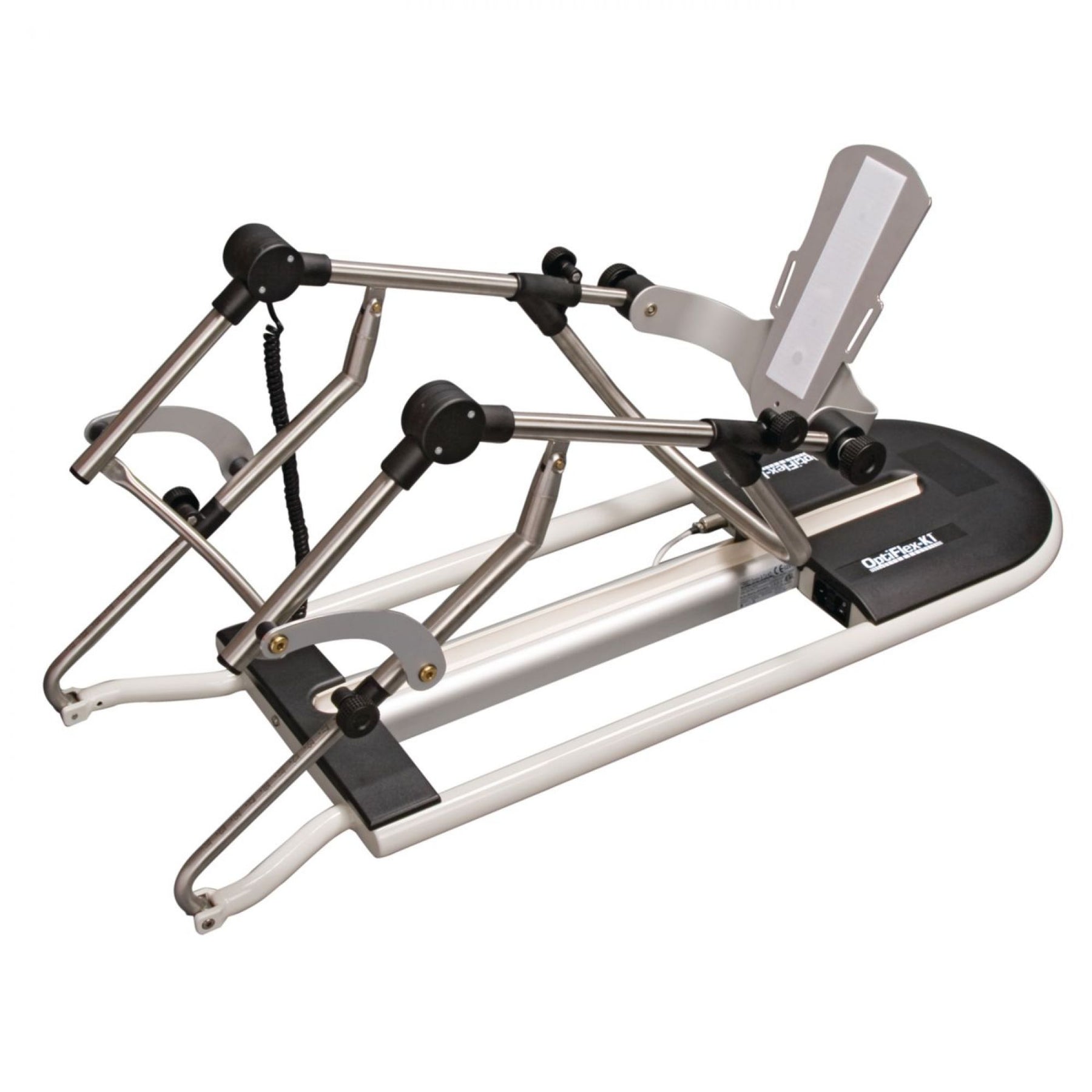

Optiflex K-1 Knee - with Pendant (Standard, Classic, Comfort)
Continuous Passive Motion is a postoperative procedure designed to aid in the recovery after joint surgery. After extensive joint surgery, if a patient fails to move their joint, the tissue around the joint will become stiff and scar tissue will form, resulting in a joint with limited range of motion, which often takes months of physical therapy to recover. OptiFlex-K1 Knee CPM has interchangeable hand controls for maximum versatility.
- Weighs just 23 lbs (10.4 kg), making it the lightest knee CPM on the market
- Only 38 inches (97 cm) long
- Wide low-profile, closed-base frame for stability
- Faster motor speed
- Single screw drive
- Reversible footplate for shorter legs
- ROM -10 to 120
- On-board power supply
- Patient lockout feature
- Accommodates patients 4 ft to 6.6 ft (1.2 m - 2 m)
- Two-year warranty
SPECIFICATION | DESCRIPTION |
---|---|
Knee Flexion: | 120° |
Knee Extension: | -10° |
Speed: | 25° - 180°/minute |
Pauses: | 0 - 59 seconds |
Force Reversal: | 45 Kp of force* (built in) |
Patient Height: | 4 - 6.5 ft (1.2 - 2 m) |
Calf Length Range: | 10" - 22" (25.4 - 55.9 cm) |
Thigh Length Range: | 12" - 19" (30.4 - 48.2 cm) |
Mains Power: | 100V-240V, AC 50-60Hz |
Unit Weight: | 23 lb (10.4 kg) |
Shipping Weight: | 54 lb (24.5 kg) |
Dimensions: | 38" x 14" x 9" (97 cm x 36 cm x 23 cm) |
Electrical Safety Class: | Class 1, Type B |
Safety Tests: | IEC 60601, 1:1988 +A1:1991, +A2:1995, CAN/CSA C22.2 NO 601.1 M90, ANSI/UL 60601-1, IEC 60601-1-2, IEC 60601-1-4, ISO 14971, ISO 10993-1 |

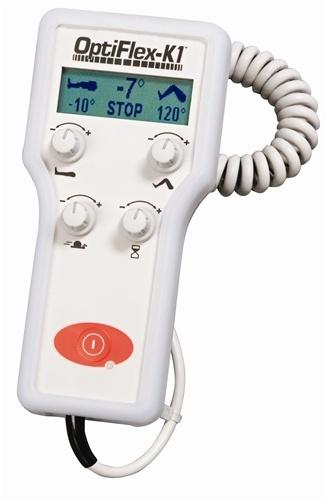

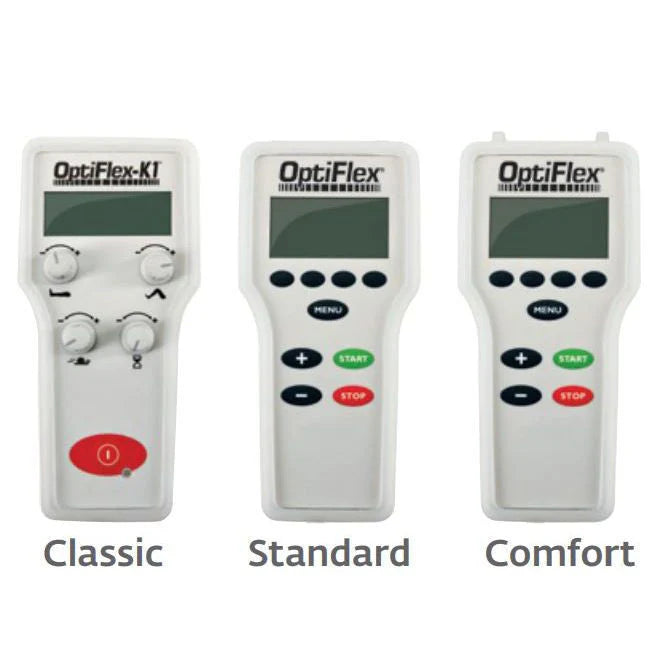

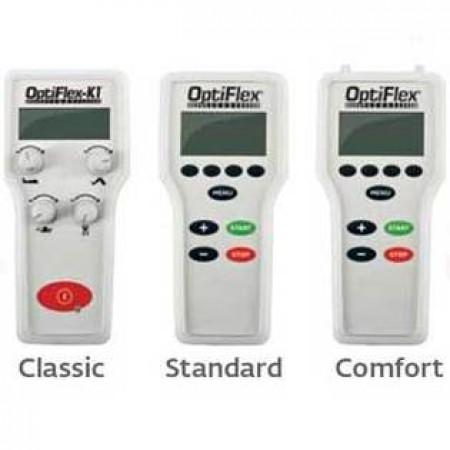

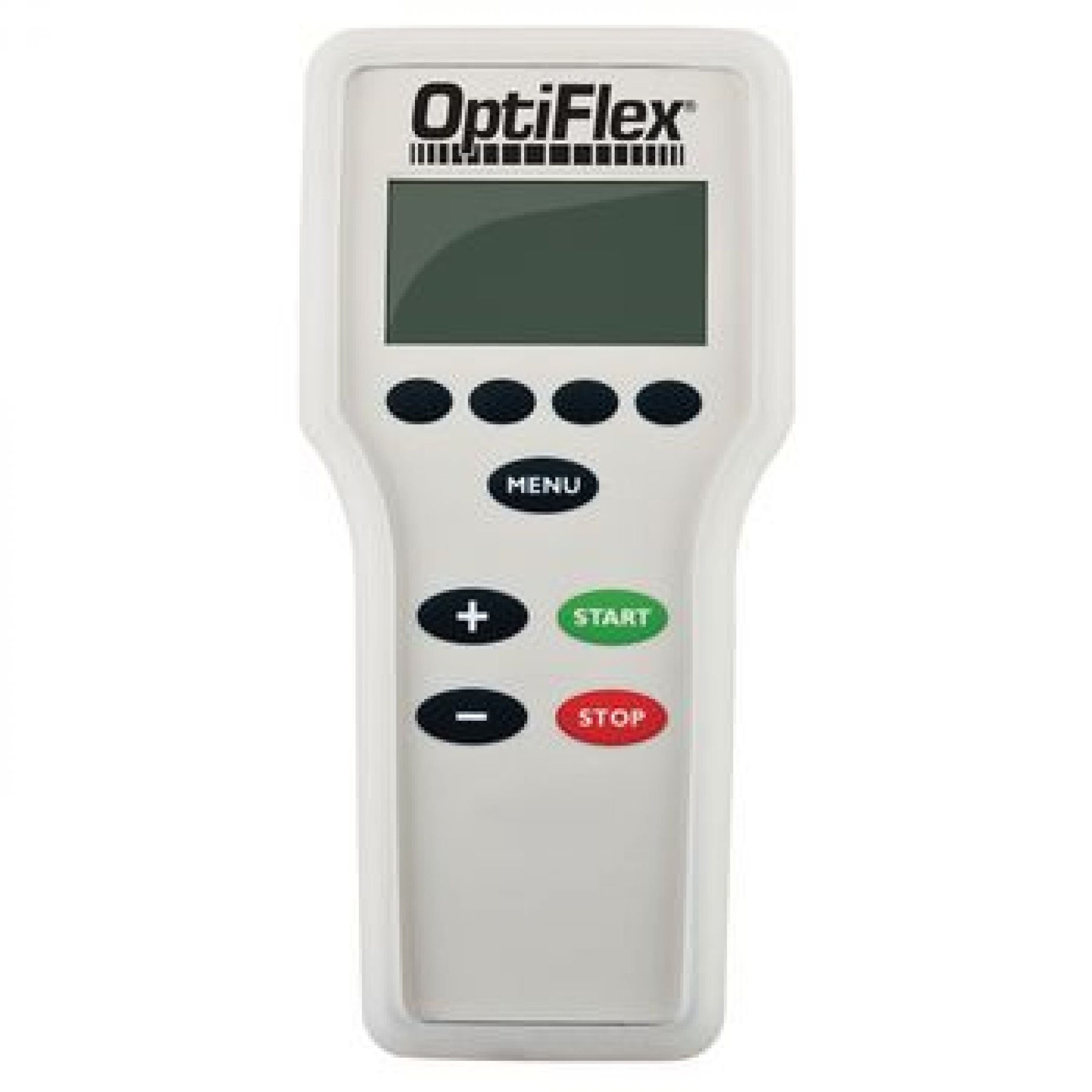

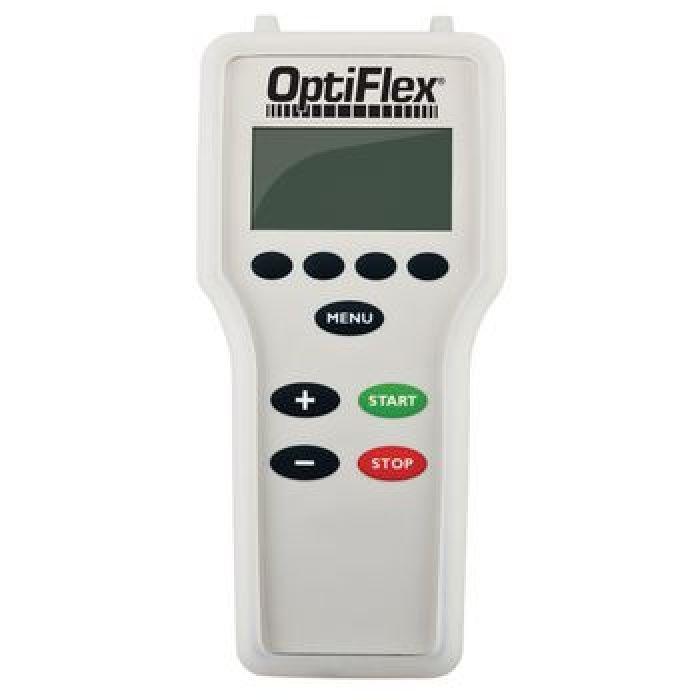

Hand Controller Functions
FUNCTION | CLASSIC HAND CONTROL | STANDARD HAND CONTROL | COMFORT HAND CONTROL |
---|---|---|---|
Key lock function: | yes | yes | yes |
Pauses: | yes | yes | yes |
Speed: | yes | yes | yes |
Timer: | no | yes | yes |
Reverse on load: | no | yes | yes |
Warm up protocol: | no | yes | yes |
Default setting: | no | yes | yes |
Transport setting: | no | yes | yes |
Chip card selectable: | no | no | yes |
EROM repeat: | no | no | yes |
Stretch protocols: | no | no | yes |
Workout protocol: | no | no | yes |
Comfort protocol: | no | no | yes |
Therapy documentation: | no | no | yes |
EMS control: | no | no | yes |
