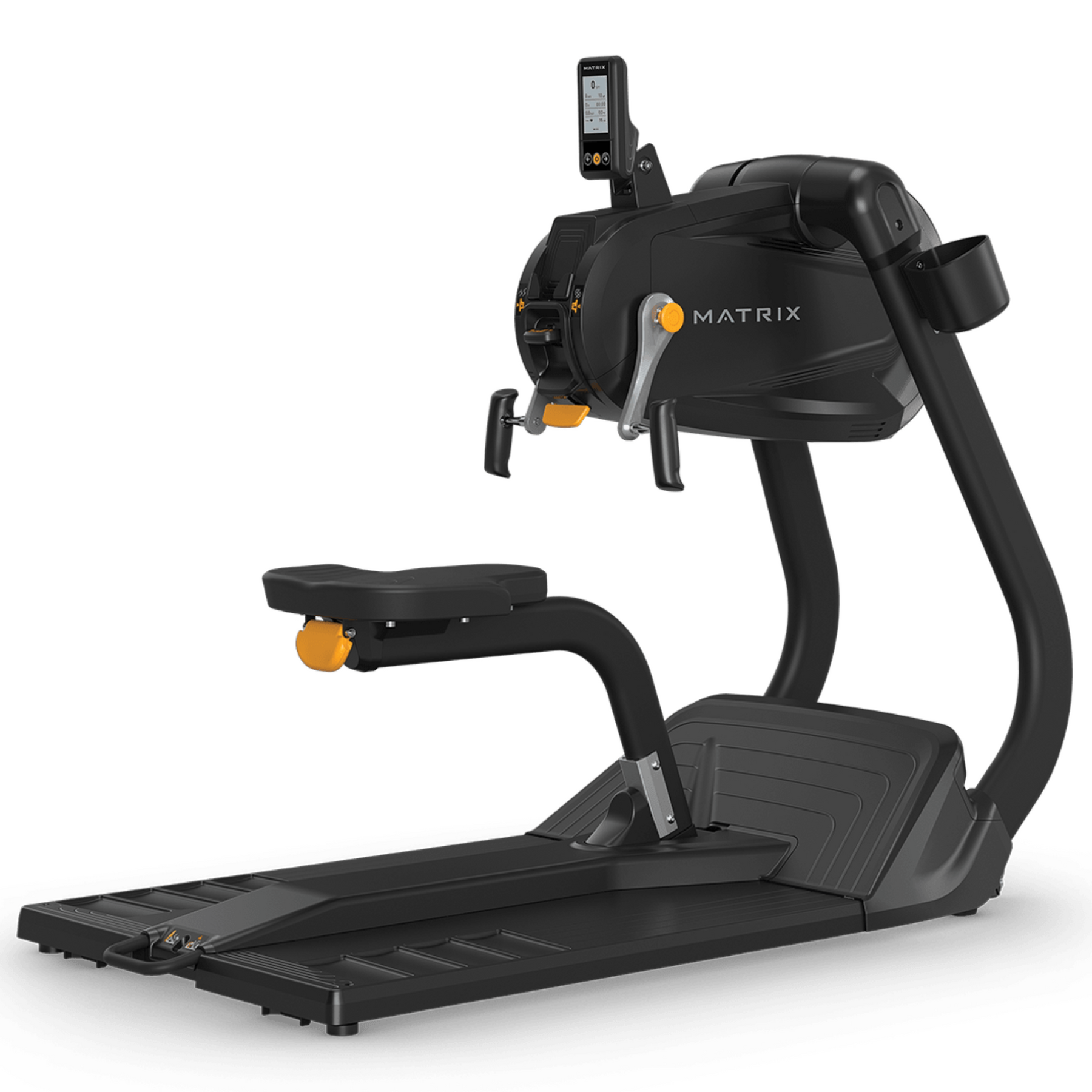

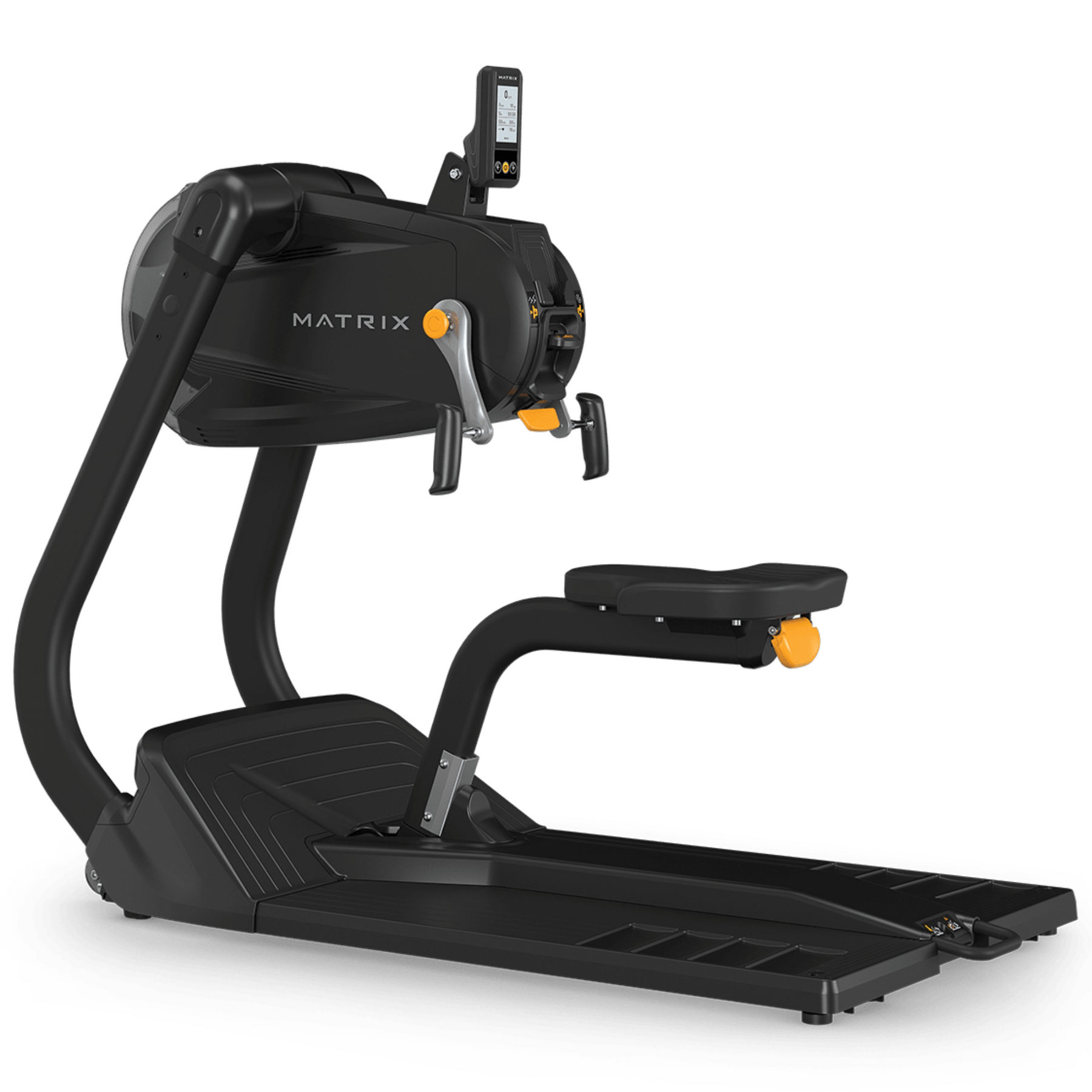

Matrix Upper Body Cycle UBC-M

The Matrix Upper Body Cycle UBC-M is a brand new, unique and accessible experience for you to add to your facility today. This unit is designed to build progressive strength and endurance with synchronous, asynchronous and independent rotations, using repeatable resistance during seated or standing workouts. The UBC-M is designed to be easy-to-use, easy-to-move, self-powered, incredibly portable, and easily adjustable! No matter their age or ability level, now everyone can take on progressive, strength-building cardio workouts with the Matrix Upper Body Cycle UBC-M.

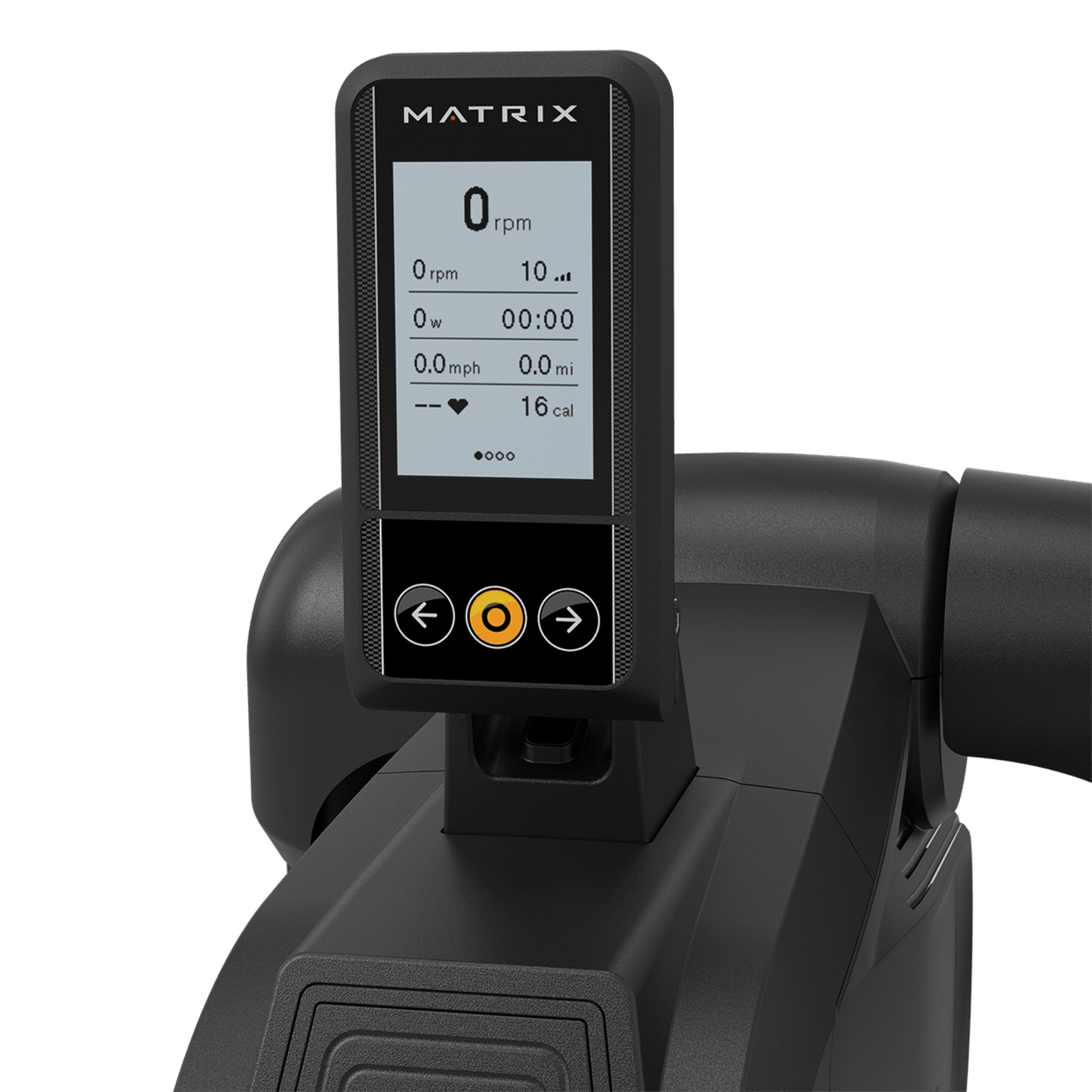

• The UBC-M features a Backlit LCD that shows Resistance, Watts, RPMs, Heart
  Rate, Calories, Time, Distance, Speed and METs.


• The Portable Design makes it easy to move for circuits and classes, while intuitive adjustments help all users get started. Features an integrated transport handle and wheels that make it easy to move the cycle between circuits, group training environments and your cardio floor.

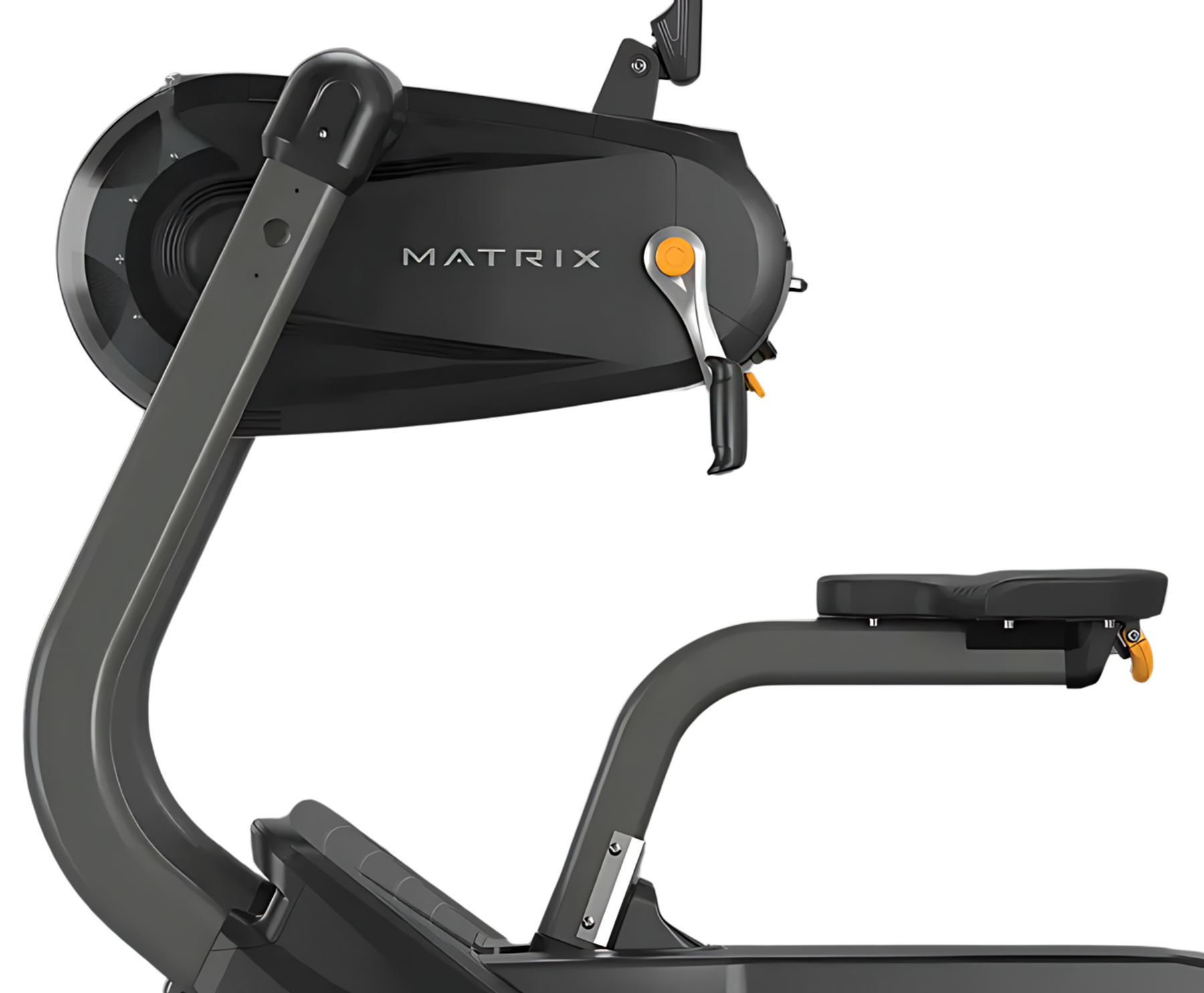

• The One-Touch Height Adjustment adapts the cycles to each user’s unique body and makes transitions between users quick and easy.

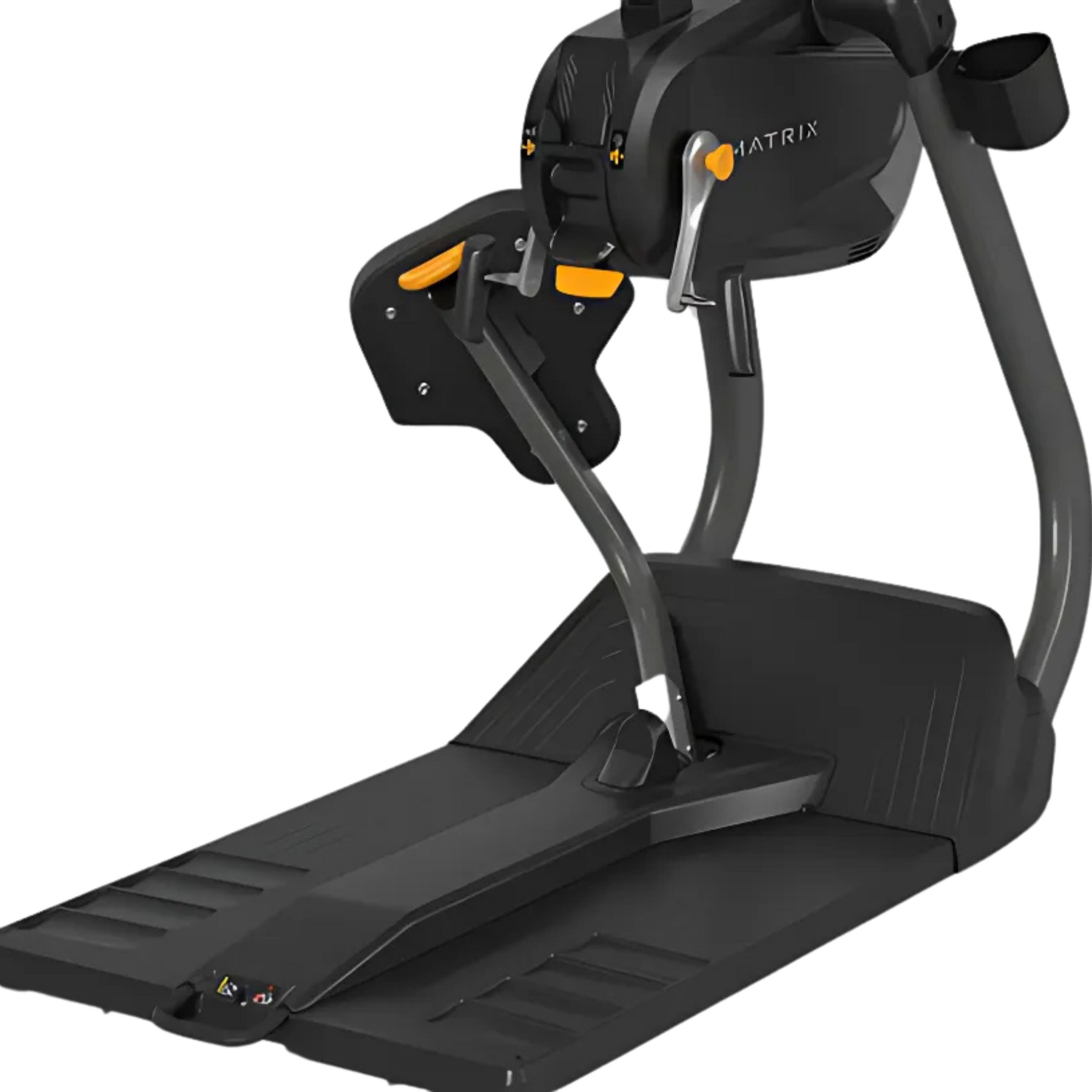

• The Contoured Seat flips of the way easily and stores on the cycle for standing or wheelchair-accessible workouts.

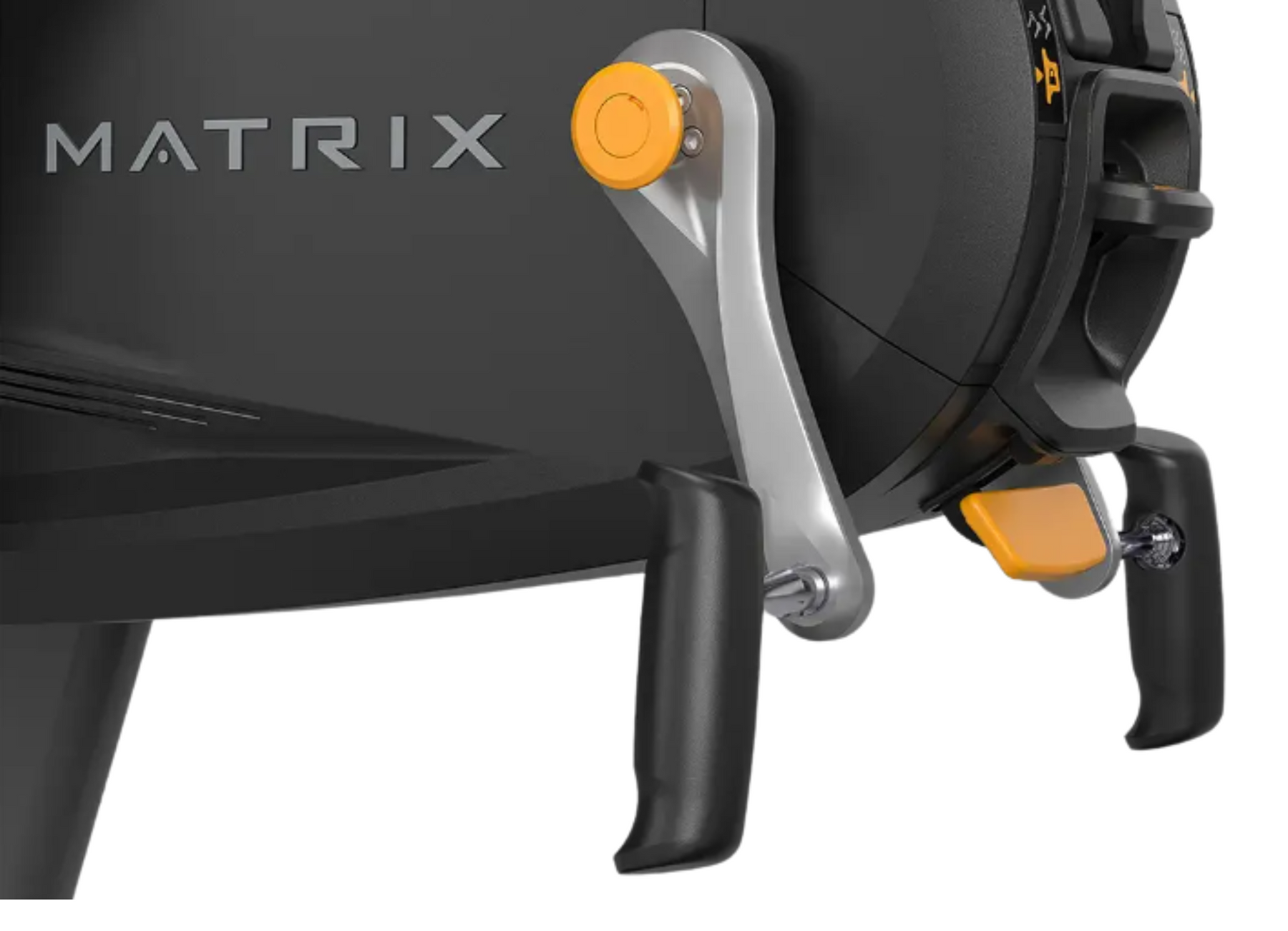

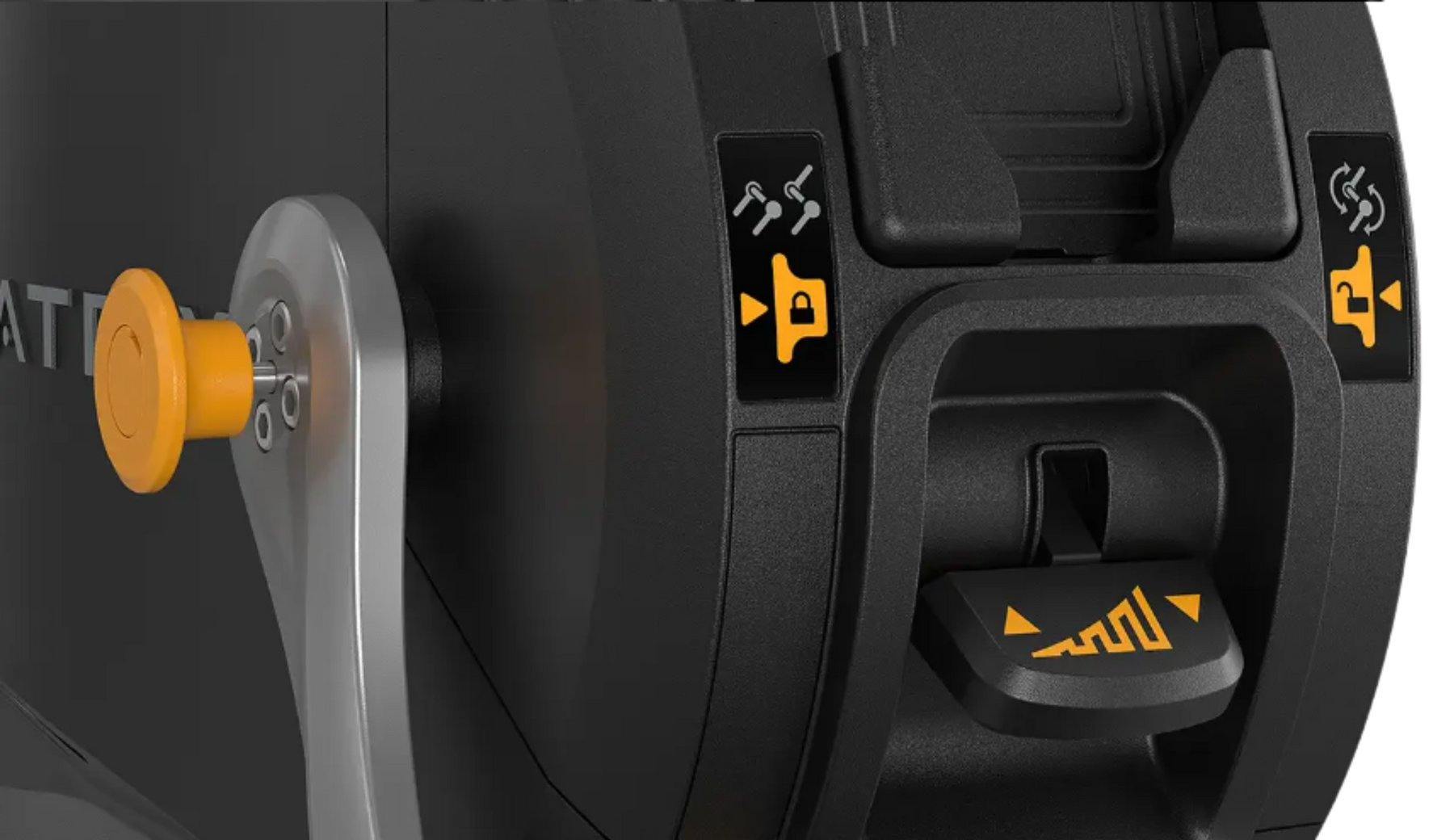

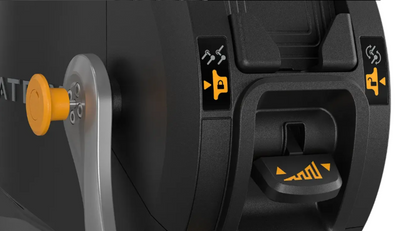

• The Crank Lock lets users quickly adjust the rotation from fixed to free movement to fit their ability levels and goals.

Frame Specifications

Assembled Dimensions - Minimum Headstock Height
159.6 cm x 78.4 cm x 127.5 cm / 62.8" x 30.9" x 50.1"

Assembled Dimensions - Maximum Headstock Height
159.6 cm x 78.4 cm x 161.3 cm / 62.8" x 30.9" x 63.5"

Maximum User Weight Capacity
204 kg / 450 lbs

Product Weight
105.1 kg / 231.7 lbs

Adjustment Type
Quick Release Lever

Resistance System
Manual Magnetic

Drive System
Roller Chain and Poly V Belt

Console Specifications

Display
Backlit LCD

Display Feedback
Heart rate*, watts, RPM, time, distance, calories

Bluetooth & ANT+
Yes; heart rate and broadcast data

Power Requirements
Generator-powered
