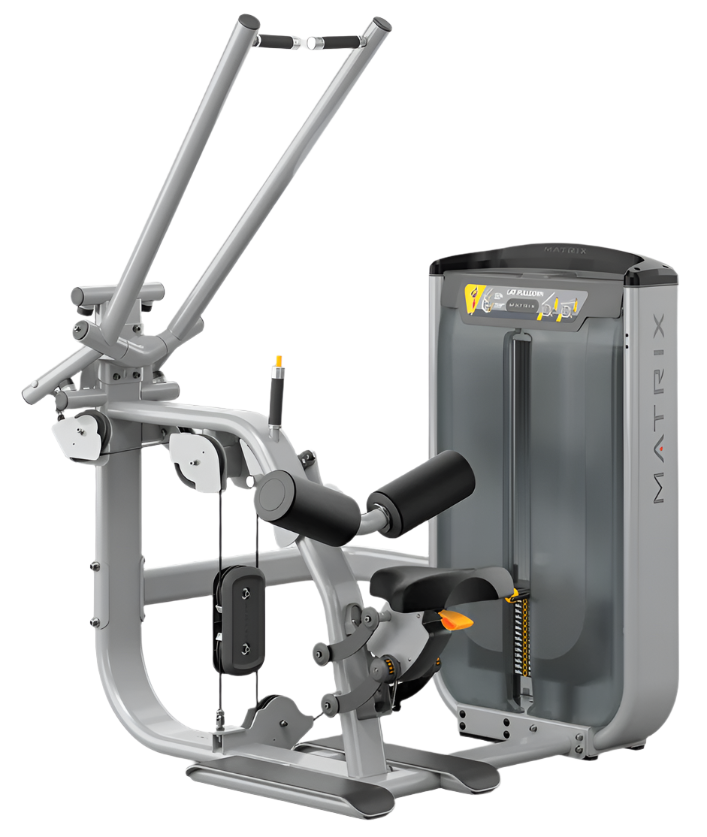

Matrix Ultra Base Trim Diverging Lat Pulldown

The Matrix Ultra Base Trim Diverging Lat Pulldown is a premium commercial-grade selectorized strength machine designed to deliver effective latissimus dorsi development through a natural, independent arm path. As part of the Matrix G7 Series, this machine combines advanced biomechanics, ergonomic adjustability, and smooth cable-driven resistance to provide a safe, efficient, and highly targeted upper-body workout.

Built for health clubs, performance training facilities, and rehabilitation environments, the Matrix Ultra Base Trim Diverging Lat Pulldown supports users of all experience levels with intuitive adjustments and consistent resistance.

Key Features & Benefits

Independent Diverging Arm Movement

The Matrix Ultra Base Trim Diverging Lat Pulldown features independent diverging movement arms, allowing each side of the body to move through a natural pulling path. This design:

• Mimics real-world pulling mechanics
• Promotes balanced muscle development
• Allows unilateral and bilateral training

Independent movement enhances exercise variety and functional strength development.

Biomechanically Optimized Lat Pulldown Motion

Engineered to build and tone the lats effectively, the machine guides users through a smooth, controlled range of motion that maximizes engagement of:

• Latissimus dorsi
• Upper back musculature
• Supporting stabilizer muscles

The diverging path improves comfort and efficiency during each repetition.

Angled Seat for Proper Positioning

An ergonomically angled seat helps position users correctly from the start, encouraging:

• Proper posture
• Optimal pulling mechanics
• Reduced strain on shoulders and lower back

This design ensures consistent form across all users.

Adjustable Thigh Pads for Stability & Comfort

The adjustable thigh hold-down pads provide:

• Secure lower-body stabilization
• Improved force transfer during pulls
• Accommodation for a wide range of user sizes

This allows for controlled, powerful repetitions without unwanted movement.

Technical Specifications

SKU - G7-S33B

Overall ”Static” Dimensions (L x W x H) - 152 x 161 x 195 cm / 59.6” x 63.1” x 76.7”

Overall ”In-use” Dimensions (L x W x H) - 152 x 161 x 195 cm / 59.6” x 63.1” x 76.7”

Product Weight (G7-S33B) - 308.5 kg / 680.5 lbs.

Product Weight (G7-S33BH) - 372 kg / 820.5 lbs.

Max Training Weight (G7-S33B) - 72 kg / 160 lbs.

Max Training Weight (G7-S33BH) - 108 kg / 240 lbs.

Max User Weight - 136 kg / 300 lbs.

Total Stack Weight (G7-S33B) - 72 kg / 160 lbs.

Weight Plate Increments - 4.5 kg / 10 lbs.

Stack Height - 135 cm / 53”

Weight Stack Guarding - Full front and rear shields

Incremental Weight System - No

Available Frame Colors - Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium

Frame Finish - Proprietary two-coat powder process

Cable Transmission - Internally lubricated cables and fittings

Machine Anchoring - Independent machine hold down brackets

Integrated Leveling System - Yes, top-down leveler

User Adjustment Range - 7-position thigh pad, 7-position seat

Machine-assisted User Adjustments - Gas-assisted seat

Color-coded Pivots & Points of Adjustment - Yes

Front Placards - Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification

Rear Placards - Color-coded machine identification, exercise-specific stretching

Placard Color Coding - Yellow (upper body)

Rep Counter - No

Personal Storage - Two tactile storage mats and one personal device cradle

Action Specific Grips - No

Foot Platform - Yes

Contoured Seat - Yes
