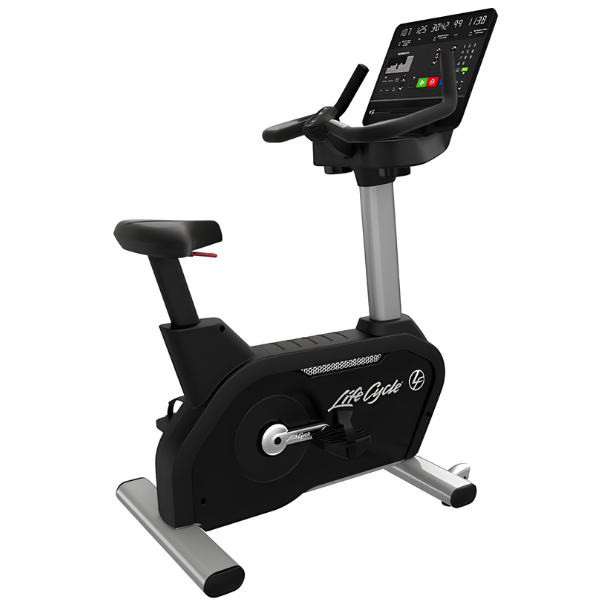

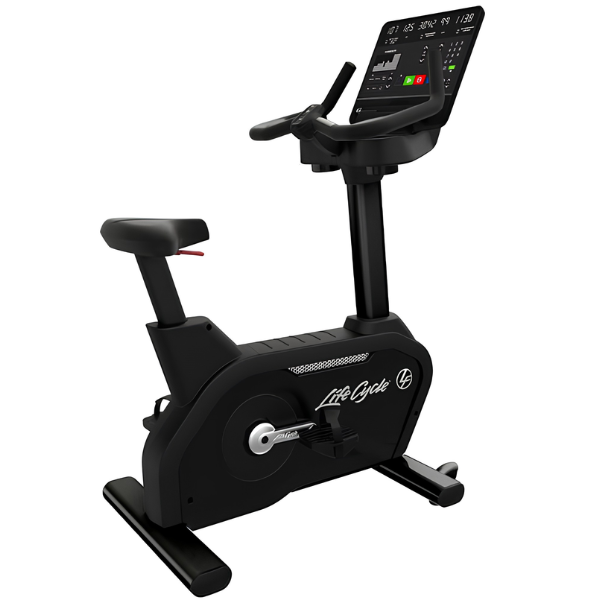

Life Fitness Integrity Upright Exercise Bike
The Life Fitness Integrity Upright Exercise Bike is a commercial upright stationary bike designed to deliver a comfortable, adjustable, and engaging indoor cycling experience for fitness facilities. Part of the Integrity+ cardio lineup, this commercial exercise bike combines an ergonomic riding position, adjustable Comfort Curve seat, racing-style handlebars, integrated resistance controls, self-leveling pedals, and a generator-driven resistance system.
Designed for a wide range of exercisers, the Integrity Upright Bike accommodates users from 4 feet 9 inches to 6 feet 5 inches and supports a maximum user weight of 400 pounds. Its 42 fine-tuned seat adjustment positions, 26 resistance levels, and multiple handlebar positions allow users to customize their riding position and workout intensity.
The Life Fitness Integrity Upright Bike is built for heavy commercial use, making it an appropriate cardio equipment solution for professional fitness environments. The Integrity+ cardio lineup is designed largely for mid- to premium-level health clubs, hospitality facilities, and multi-unit housing fitness centers.
With its combination of commercial construction, a 400-pound user capacity, adjustable ergonomics, and multiple console configurations, the Integrity Upright Bike is designed to accommodate diverse populations in busy fitness environments.
The upright bicycle configuration provides a familiar stationary cycling experience while maintaining a relatively compact footprint of 41.5 inches long by 24.5 inches wide by 54.5 inches high.
The Integrity Upright Bike is designed around an ergonomic riding position with multiple contact points and adjustment options.
Its handlebars provide cruising, hybrid, and race positions, allowing users to change hand placement during their workout. The handlebar assembly also incorporates elbow rests and centrally positioned quick resistance controls for convenient adjustments while riding.
This combination of racing-style handlebars, elbow support, and integrated controls gives the Integrity Upright Bike versatility for different riding positions without requiring the user to interrupt the workout to access the primary resistance controls.
The Integrity Upright Bike features an Improved Comfort Curve seat with 42 fine-tuned seat adjustment positions operated through a one-touch lever.
This extensive range of adjustment helps accommodate the manufacturer's stated user height range of 4 feet 9 inches to 6 feet 5 inches. The adjustable saddle allows users to fine-tune their riding position before beginning a workout or between users in a commercial fitness environment.
The bike has a 21.14-inch step-over height, providing a defined entry point for mounting the upright stationary bike.
The Integrity Upright Bike features ergonomic racing handlebars designed around three primary riding positions:
The handlebars include elbow rests, while the center of the handlebar provides quick resistance controls. These integrated controls make it possible to adjust resistance during a workout without removing the user's hands from the primary handlebar area.
The Integrity Upright Bike provides 26 resistance levels, giving exercisers a range of workout intensity options.
Resistance is generated through a hybrid eddy current brake with a brushless internal generator. Life Fitness describes this system as providing low drag and high power capability.
The bike uses a generator drive system with an 8-ribbed Poly-V belt resistance system. A single-stage belt drive with self-tensioning idlers is designed to minimize mechanical drag and maintenance requirements.
The Integrity Upright Bike uses self-leveling Wide Ride pedals with simple buckle straps. The pedals measure 6.56 by 5.5 inches, providing a generous platform for different foot positions.
Self-leveling pedals are designed to return to an accessible orientation when the user finishes pedaling, while the included buckle straps help secure the user's feet during cycling.
The SL LED Console provides a simpler display option and is the console configuration identified by Life Fitness as self-powered.
For facilities using compatible console configurations, Facility Connect provides tools for equipment management, data analytics, maintenance support, software updates, and facility customization.
This gives fitness operators additional tools for managing a connected cardio equipment fleet while providing users with access to connected workout experiences.
The Integrity Upright Bike uses a generator drive system with an 8-ribbed Poly-V belt resistance system.
The single-stage drive incorporates self-tensioning idlers designed to minimize mechanical drag and reduce maintenance requirements. The generator-based system also allows the bike to produce its own operating power under the appropriate configuration.
Life Fitness specifies the bike's power output range as 29 watts minimum to 900 watts maximum, with a minimum operating cadence of 30 RPM.
The Integrity Upright Bike supports heart rate monitoring and telemetry. The Life Fitness Support Hub identifies compatibility with its digital contact heart-rate monitoring system and Polar telemetry-compatible heart-rate monitoring.
Heart-rate monitoring provides an additional source of workout information for compatible users and facility cardio programs.
The Integrity Upright Bike is designed for heavy commercial use and has a maximum user weight of 400 pounds.
The assembled bike weighs approximately 169 pounds, while the manufacturer's listed shipping weight is approximately 200 pounds. Transport wheels are included to facilitate equipment positioning within a fitness facility.
Technical Specifications:
| Description | Integrity+ Cardio Upright Bike |
|---|---|
| Console | 16” or 24” Smart Touchscreen SE4 Console ; SL LED Console |
| Handlebars | Ergonomic racing with elbow rest |
| Quick Controls | Yes - Center of handlebar |
|---|---|
| Saddle | Improved Comfort Curve™ Seat |
| Pedals | Self-Leveling Wide Ride™ Pedals |
| Pedal size | 6.56" x 5.5" (16.7 cm x 14 cm) |
| Pedal Straps | Yes |
| Accessories Holder | Integrated Accessory Tray |
| Color Options | Diamond White, Arctic Silver, Titanium Storm, Smooth Charcoal, Black Onyx |
| Seat | Improved Comfort Curve™ Seat with 42 Fine-Tuned Seat Adjustments with 1-Touch lever |
| Step-over height | 21.14" (536.9mm) |
| User Height Range | 4'9" - 6'5" |
| Max User Weight | 400 lb (182 kg) |
| Transport Wheels | Yes |
| Drive System | Generator Drive System with 8-Ribbed Poly-V Belt resistance system |
| Resistance Levels | 26 |
| Resistance Type | Hybrid Eddy current brake with brushless internal generator for low drag and high power capability |
| Belt Drive | Single stage drive with self-tensioning idlers for minimal mechanical drag and low maintenance |
| Multi Ribbed Belt Drive | Yes |
| Generator | Generator |
| Riding Variety | In-saddle only |
| Crank size | 165mm (6.5") |
| Touch | Yes |
| Telemetry | Yes |
| Self-powered | SL Console only |
| Power Requirements | 120V, 20A or 230V, 10A (varies by country) outlet Required for Attachable TV and Discover Consoles |
| Minimum Watts | 29 Watts |
| Maximum Watts | 900 Watts |
| Minimum RPM | 30 rpm |
| Dimensions (L x W x H) | 41.5" x 24.5" x 54.5" (105 x 62 x 138 cm) |
| Assembled Weight | 169lbs (76.5kg) |
| Shipping Weight | 200lbs (91kg) |
| Shipping Configurations (for non-installed purchases) (L x W x H) | 63" x 27" x 39" (160.02 cm x 68.58 cm x 99.06 cm) |
