- 2017 Model Gently Used in Showroom. Comes with Certified Pre-Owned (CPO) 6 Month Warranty.
- Developed and Engineered by Dr. Joseph Gallo (Leading Clinical Director that made Chattanooga Legend XT & Vectra Genisys)
- Easiest Touch Screen Technology with Loaded Clinical Protocols
- Supported by Richmar - Leading Manufacturer of Modality Equipment
- Electrotherapy waveform rationale
- Appropriate parameter settings
- Electrode placement guide
- Ultrasound applicator recommendations

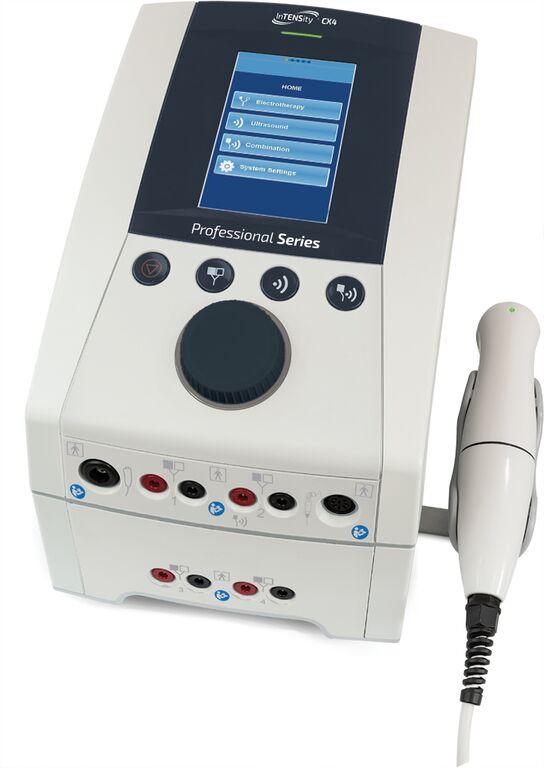

- Combination electrotherapy and ultrasound therapy system
- 4 channels of independent stimulation can be used in combination (linked) or totally independent
- Multiple waveform electrotherapy six clinical waveforms:
- TENS (Symmetrical Biphasic & Asymmetrical Biphasic)
- High Volt
- 1 and 3 MHz ultrasound frequencies
- Pulsed and Continuous Modes
- Ergonomically designed 5 cm² sound head for excellent ERA during treatments (1 cm² sound head optional)
- Low BNR ratio of 5:1
- Ultrasound Amplitude can be toggled between w and w/cm²
- Sound head coupling feature

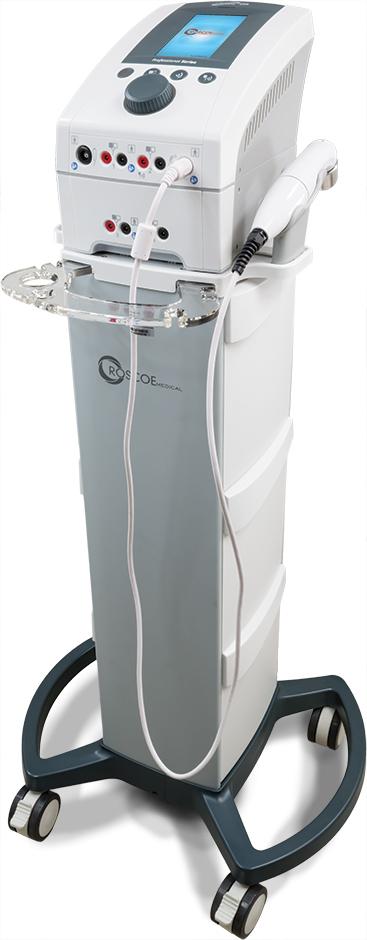

- Sleek, user-friendly, ergonomic design for tabletop or therapy cart use
- Large, easy-to-read, color LCD display with a touchscreen interface
- Favorites- feature allows storage of up to 99 custom programs for future use
- Comprehensive library provides treatment education and suggested electrode placement
- Multi-patient function provides the ability to treat up to three patients at once for maximum practice usage
- Independent intensity and parameter controls for each channel
- Clinical protocols providing the appropriate parameters for a variety of acute and chronic conditions
- Manual operation allows for user-defined protocols
- Patient remote kill switch connection allows patient to stop treatment at the push of a button
- Frequency: 1 and 3 MHz
- Duty Cycles: Pulsed and Continuous
- Pulse Frequency: 100 Hz
- Pulse Duration: 1-9 mSec ± 10% (set by Duty Cycle)
- Ramp (Fixed): 1s
- Treatment Time: 1-60 minutes
- Duty Factor > 80%: 2.0 W/cm²
- Duty Factor < 70%: 3.0 W/cm²
- Treatment Timer: 0-30 min ± 0.1 min
- 5 cm² Crystal: 5 cm²
