Chest Weight Pulley System (Choose One OR Two Towers) (Choose Single, Dual, OR Triplex Handles)

The CanDo Chest Weight Pulley System is a professional-grade wall-mounted rehabilitation device designed to improve upper body strength, range of motion, and functional mobility. Widely used in physical therapy clinics, hospitals, sports medicine facilities, and home rehab settings, this system enables controlled resistance training for the arms, shoulders, chest, and back.

Built for versatility and clinical precision, the system features adjustable handles, selectable weight stacks, and customizable configurations, making it suitable for patients at all stages of recovery as well as general strength training users.

A defining feature of the CanDo Chest Weight Pulley System is the ability to choose between single-tower and dual-tower configurations, allowing facilities to tailor the system to their needs:

One Tower (Single Stack)

• One vertical weight stack
• Ideal for:
  • Home use or smaller clinics
  • Basic unilateral or bilateral exercises
• More compact and cost-efficient setup

Two Towers (Dual Stack)

• Two independent weight stacks (left and right)
• Enables:
  • Simultaneous bilateral training
  • Independent resistance for each arm
• Preferred for advanced rehab programs and high-volume clinics

This configuration flexibility allows providers to scale functionality based on patient demand and therapy complexity.

The system can also be configured with different handle setups, directly impacting exercise variety and training capability:

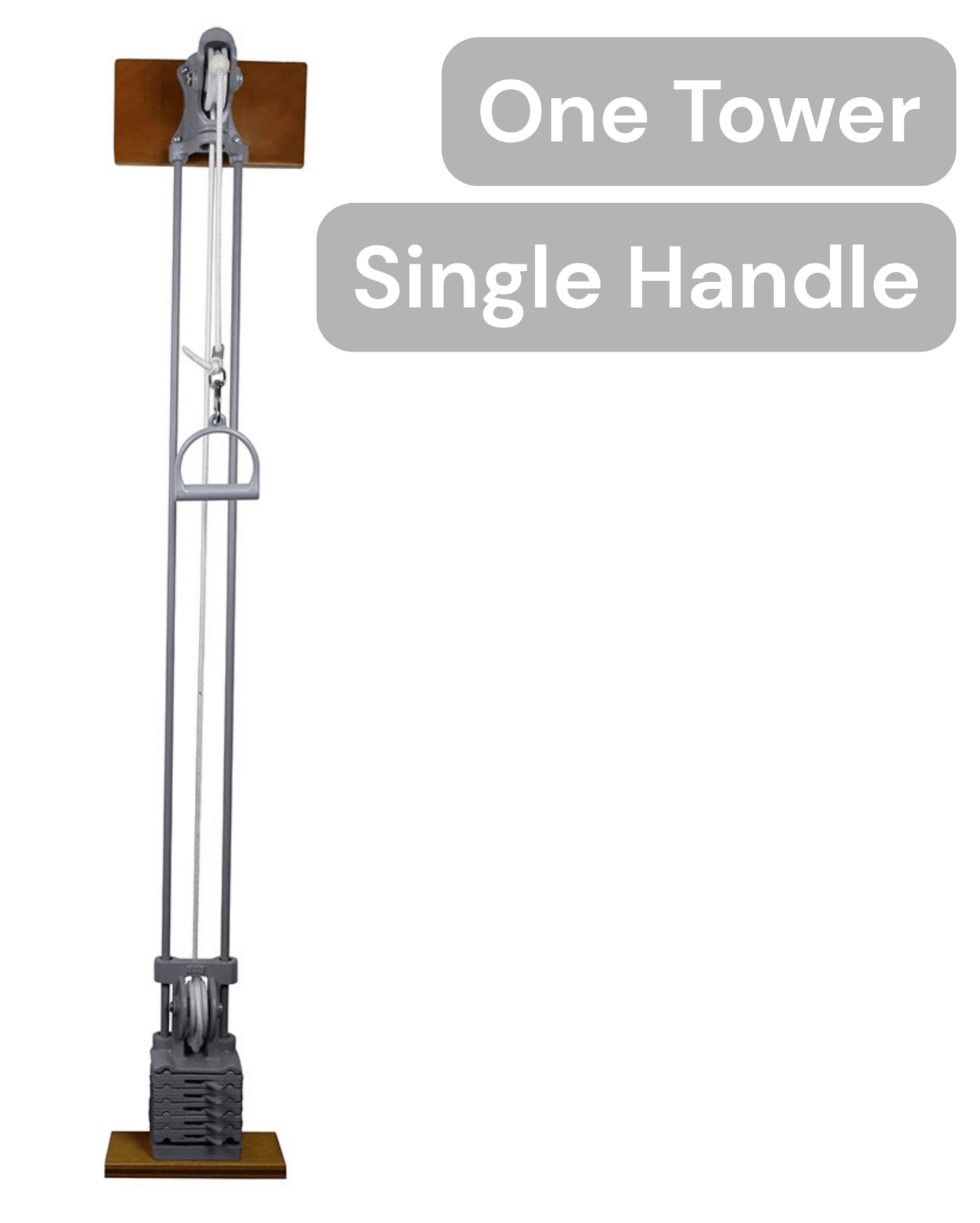

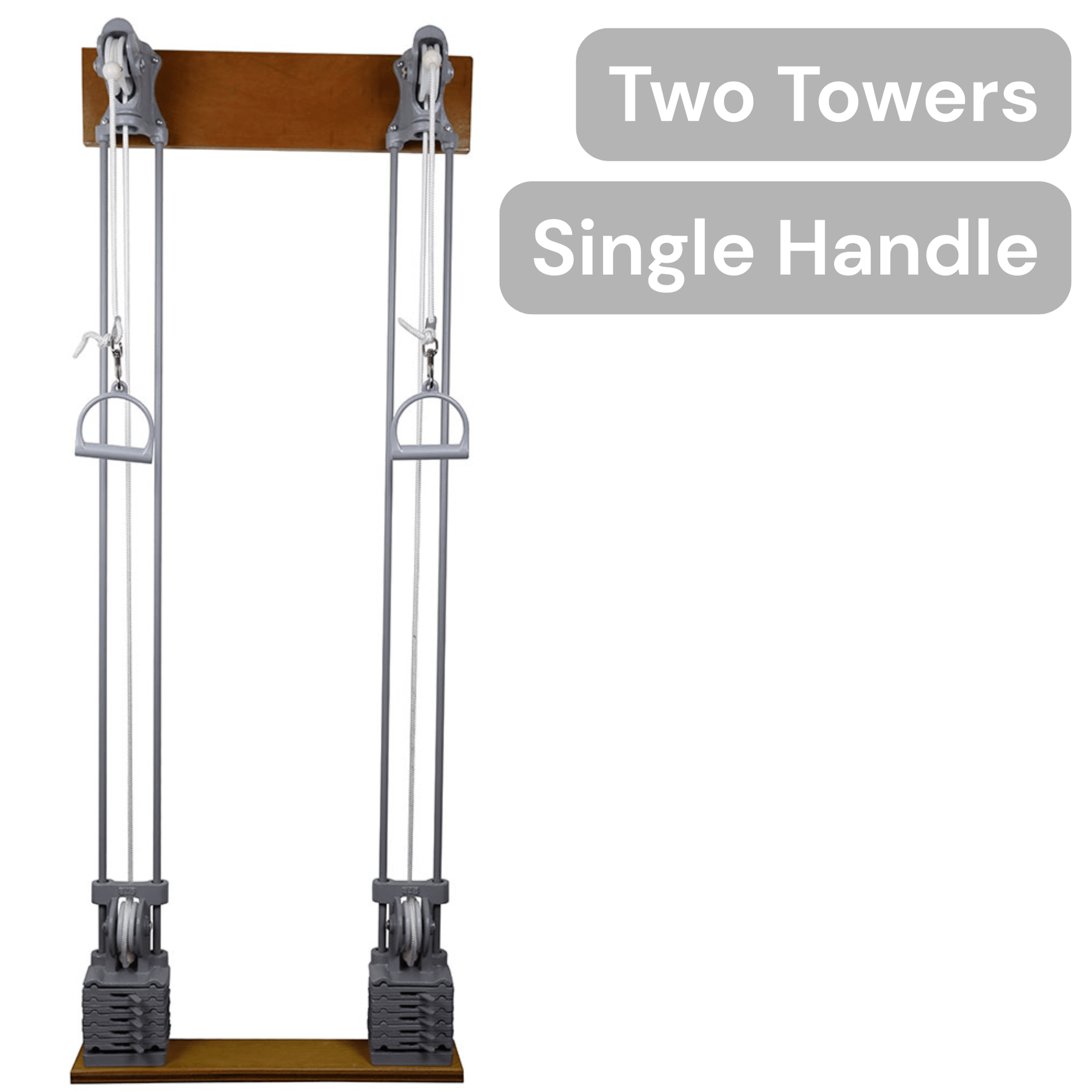

Single Handle Configuration

• Handle positioned at chest height only
• Suitable for:
  • Basic rehabilitation exercises
  • Early-stage recovery programs

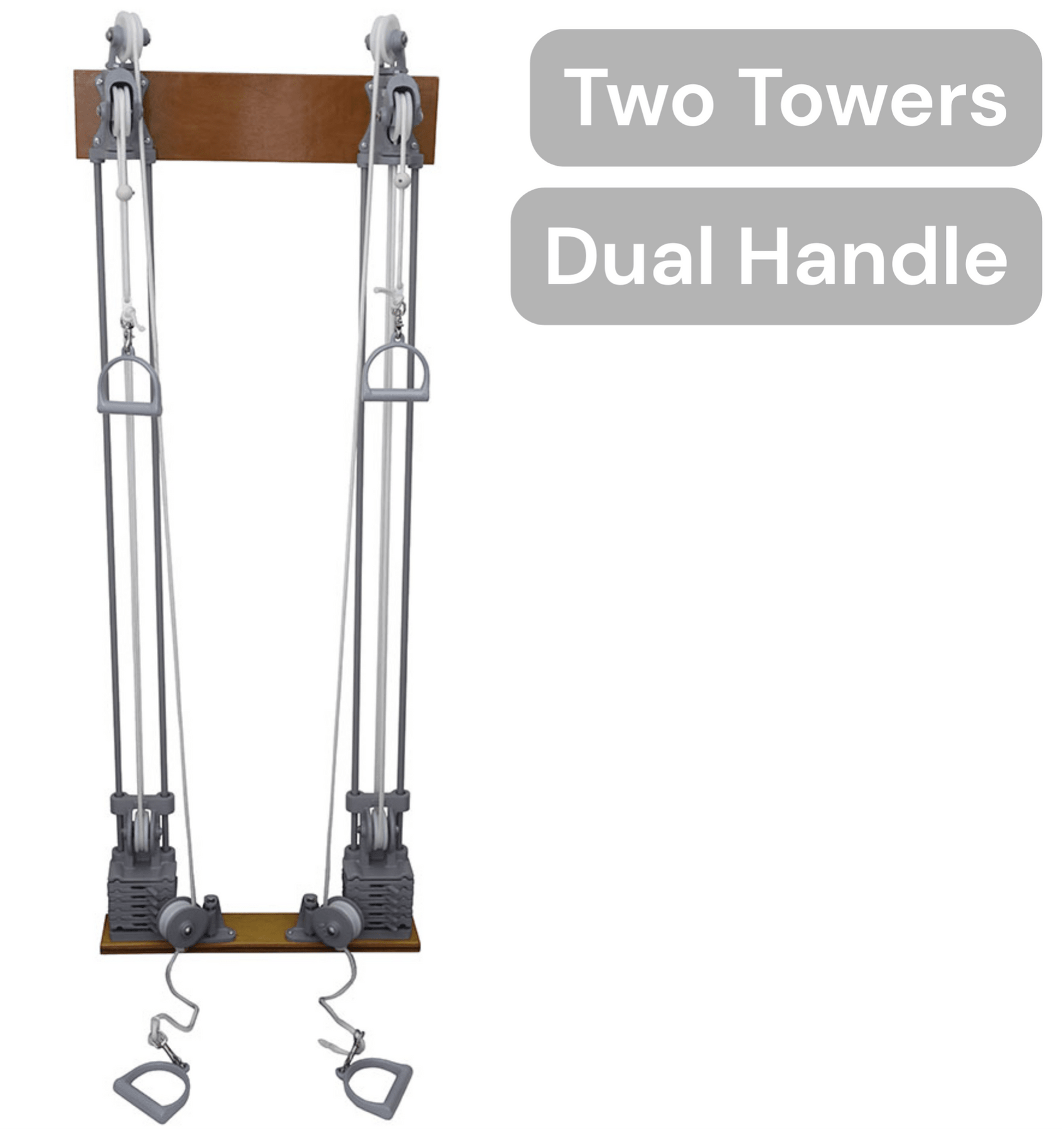

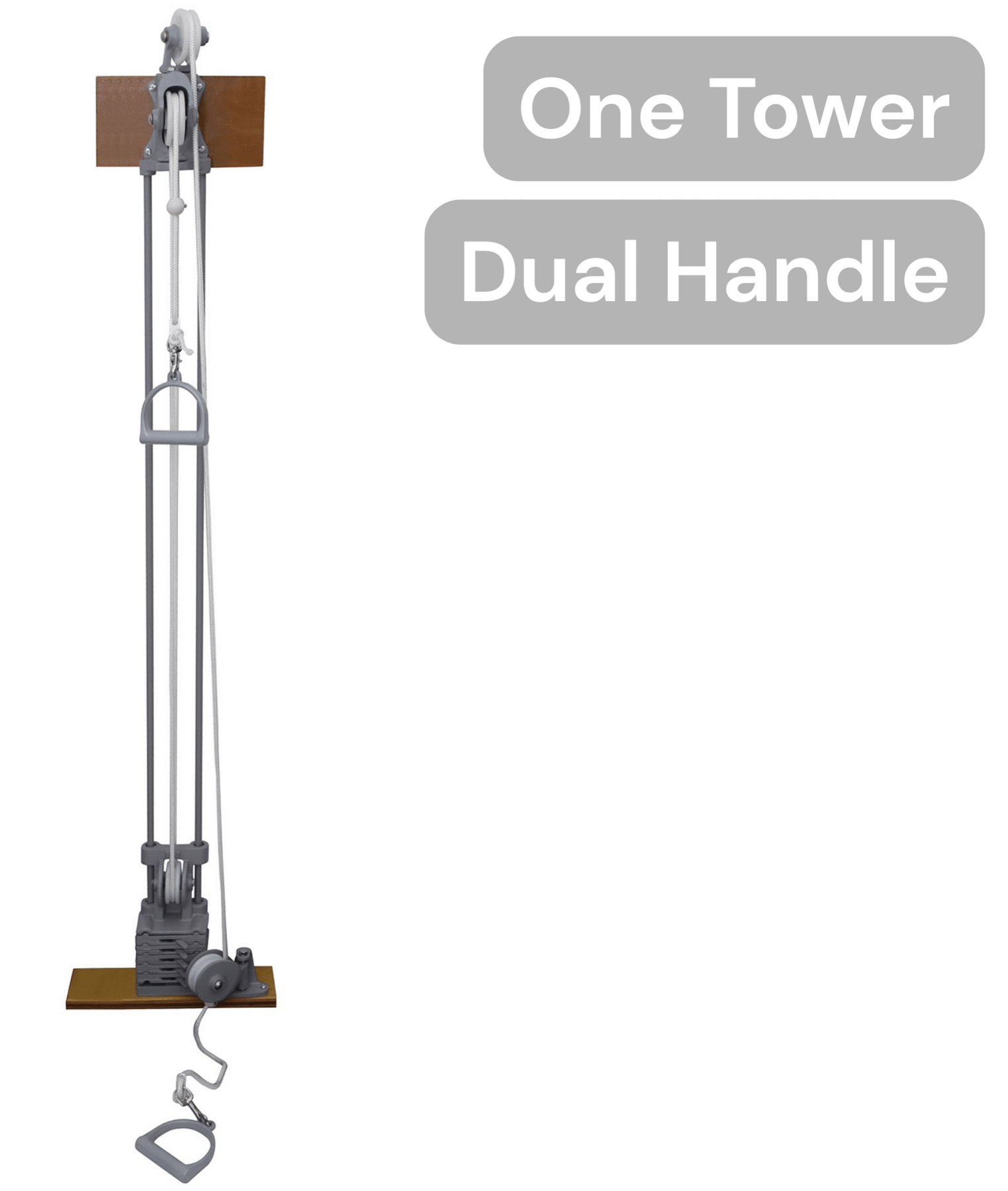

Dual Handle Configuration

• Handles positioned at chest and floor height
• Enables:
  • Expanded range of motion exercises
  • Seated and standing movement patterns
• Common choice for general clinical use

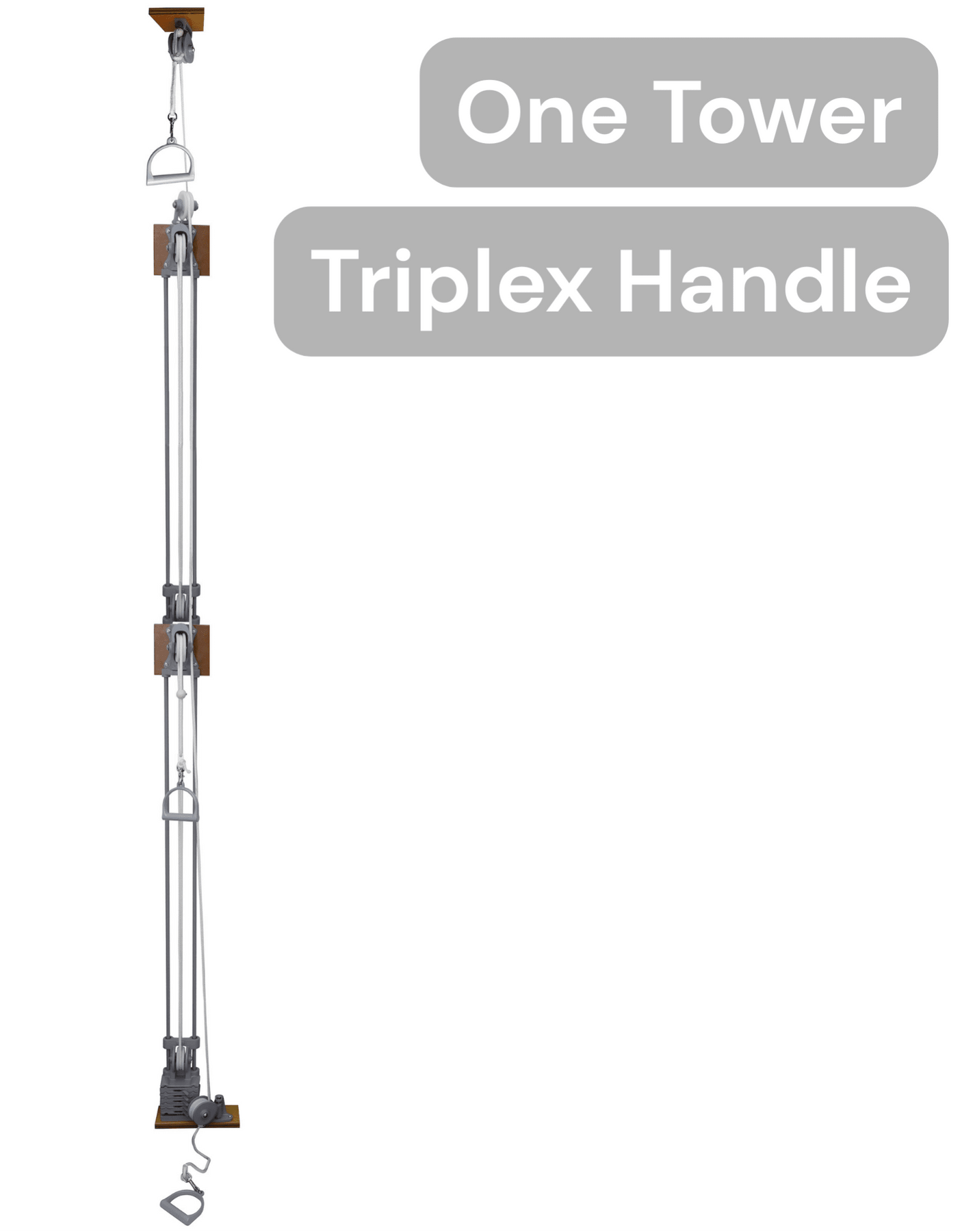

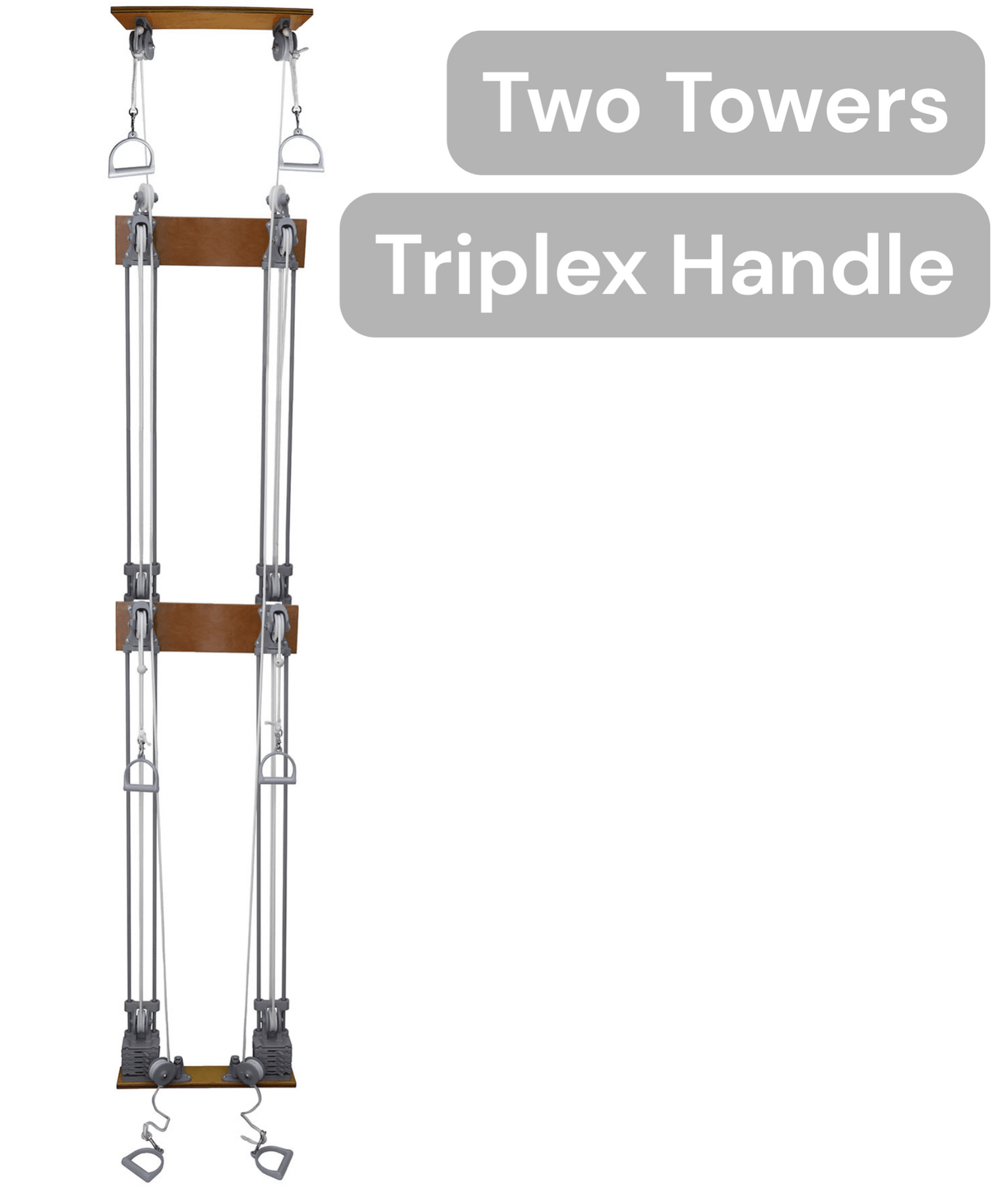

Triplex Handle Configuration

• Handles positioned at chest, floor, and shoulder height
• Provides maximum versatility for multi-angle training
• Requires approximately 10 ft ceiling clearance for proper installation

Key Features & Benefits

Progressive Resistance Weight Stack

• Resistance is adjusted using a pin-loaded weight stack
• Weight increases in 2 lb increments for precise progression
• Additional weight blocks are available to expand resistance capacity

Fully Adjustable for Customized Therapy

• Handles can be adjusted to any starting height
• Rope length is adjustable via a rope slip system
• Accommodates different user heights, exercise positions, and therapy protocols

Multi-Position Handle System

• Designed to support multiple exercise angles and movement patterns
• Enables exercises such as:
  • Shoulder flexion/extension
  • Chest press and rows
  • Functional pulling and reaching movements

Wheelchair Accessible Design

• System is accessible for seated and wheelchair users
• Supports inclusive rehabilitation across diverse patient populations

Specifications

• One Tower, Single Handle
  • SKU: 10-0667
  • Dimensions: 14" x 7" x 14"
  • Weight: 30 lbs
  • UPC: 714905005427


• One Tower, Dual Handle
  • SKU: 10-0668
  • Dimensions: 14" x 12" x 14"
  • Weight: 38 lbs
  • UPC: 714905005489

• One Tower, Triplex Handle
  • SKU: 10-0669
  • Dimensions: 14" x 12" x 14"
  • Weight: 52 lbs
  • UPC: 714905005540


• Two Towers, Single Handle
  • SKU: 10-0660
  • Dimensions: 27" x 8" x 9"
  • Weight: 56 lbs
  • UPC: 714905005397

• Two Towers, Dual Handle
  • SKU: 10-0661
  • Dimensions: 28" x 10" x 16"
  • Weight: 70 lbs
  • UPC: 714905005458


• Two Towers, Triplex Handle
  • SKU: 10-0662
  • Dimensions: 25" x 8" x 22"
  • Weight: 78 lbs
  • UPC: 714905005519
