Chattanooga Primera TENS/NMES Complete With HAN Waveform

The Primera TENS/NMES Complete with Chattanooga's distinctive HAN Waveform offers a unique dispense and disperse mode of stimulation which modulates between low (2 Hz) and high (70 Hz) frequencies. It also features an extensive range of programs configured for the user's specific clinical needs. There are 8 TENS programs used for temporary pain relief and 6 NMES programs to stimulate and improve muscle performance. The complete package includes: a PRIMERA Unit, Carrying Case, Battery, Leadwires, Electrodes, Electrode Positioning Back Belt and User's Manual.

Key Features & Benefits:

• 2-in-1 TENS & NMES Therapy: Combines Transcutaneous Electrical Nerve Stimulation (TENS) and Neuromuscular Electrical Stimulation (NMES) in one portable unit.
• 14 Preset Programs: Includes 8 TENS programs and 6 NMES programs, helping simplify treatment setup without requiring users to manually build stimulation parameters.
• Unique HAN TENS Waveform: Alternates low-frequency 2 Hz stimulation with higher-frequency 70 Hz stimulation in repeating phases for a distinctive TENS treatment option.
• Dual-Channel Output: Two individually isolated channels allow stimulation through multiple electrodes and independent intensity adjustment for each channel.
• Up to 80 mA Output: Both TENS and NMES modes provide adjustable stimulation from 0-80 mA into a 500-ohm load.
• Multiple TENS Modes: Preset options include Continuous, Burst, Modulated, and HAN TENS waveforms.
• Built-In Safety Features: Open-electrode detection automatically resets output current to zero when an open circuit is detected, while the LCD provides a low-battery warning.
• Portable 9V Operation: Compact, lightweight design operates from a replaceable 9-volt alkaline battery, making the unit convenient for home or on-the-go use.

Common Uses:

TENS Pain Relief

The Primera TENS programs are intended for temporary relief of pain associated with sore and aching muscles of the lower back, arms, and legs resulting from strain associated with normal, non-commercial household activities.

NMES Muscle Stimulation

The NMES programs are designed to stimulate healthy muscles in order to facilitate and improve muscle performance. Six preset NMES programs provide different stimulation rates and work/rest cycles for varied muscle-stimulation needs.

Why Choose The Chattanooga Primera?

Primera is a strong choice for users who want more versatility than a basic TENS unit without moving to a larger clinical electrotherapy system. Instead of purchasing separate pain-relief and muscle-stimulation devices, Primera combines TENS and NMES with 14 preset programs in one compact platform. Its dual-channel design, dedicated HAN waveform, straightforward controls, back electrode-positioning belt, replaceable battery, and complete accessory package make it especially convenient for ongoing home electrotherapy.

Program Comparison Chart

TENS Programs

P01 - Continuous TENS: 80 Hz, 200 µs, 1 hour
P02 - Continuous TENS: 150 Hz, 175 µs, 20 minutes
P03 - Continuous TENS: 2 Hz, 175 µs, 20 minutes
P04 - Burst TENS: 150 Hz, 200 µs, 1 hour
P05 - Burst TENS: 150 Hz, 175 µs, 1 hour
P06 - Modulated TENS: 100/65 Hz, 200/100 µs, 1 hour
P07 - Modulated TENS: 65/100 Hz, 200/100 µs, 1 hour

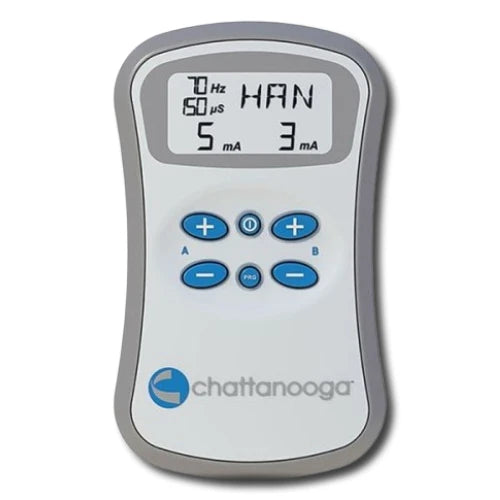

HAN TENS: Alternates 2 Hz at 250 µs and 70 Hz at 150 µs; 30-minute program.

NMES Programs

P08: 12 Hz, 200 µs, 5-sec work / 5-sec rest, 15 minutes
P09: 35 Hz, 250 µs, 8-sec work / 8-sec rest, 15 minutes
P10: 12 Hz, 200 µs, 5-sec work / 10-sec rest, 15 minutes
P11: 35 Hz, 200 µs, 6-sec work / 12-sec rest, 15 minutes
P12: 12 Hz, 250 µs, 5-sec work / 15-sec rest, 15 minutes
P13: 35 Hz, 200 µs, 6-sec work / 18-sec rest, 15 minutes.

Product Specifications:

Brand: Chattanooga
Product: Primera™ TENS/NMES with HAN Waveform
Device Type: Over-the-Counter TENS/NMES electrical stimulator
Channels: 2 individually isolated channels
Output Type: Constant current, 500-1,500 ohms
Amplitude: 0-80 mA into a 500-ohm load; actual output may vary with electrode/load impedance
Waveform: Asymmetrical, rectangular biphasic waveform with zero DC current
TENS Programs: 8
NMES Programs: 6
TENS Modes: Continuous, Burst, Modulated, and HAN
Continuous TENS Frequencies: 2, 80, or 150 Hz depending on program
NMES Frequencies: 12 or 35 Hz depending on program
NMES Pulse Width: 200 or 250 µs depending on program
HAN Parameters: 2 Hz / 250 µs followed by 70 Hz / 150 µs in repeating 3-second phases
Power: 9-volt alkaline battery
Low-Battery Indicator: Battery symbol flashes when voltage falls below approximately 6.9 V ±0.2 V
Open Electrode Detection: Output resets to 0 mA if an open circuit is detected on Channel A or B
Dimensions: 4.25" x 2.44" x 1.02" without belt clip; 1.25" thick with belt clip
Weight: Approximately 3.17oz without battery; 3.5oz with battery
Operating Temperature: 5°C to 40°C (41°F to 104°F)
Storage/Transport Temperature: -25°C to 70°C (-13°F to 158°F)
Warranty: 2 years for the original purchaser against defects in material, components, and workmanship; consumable items are excluded.

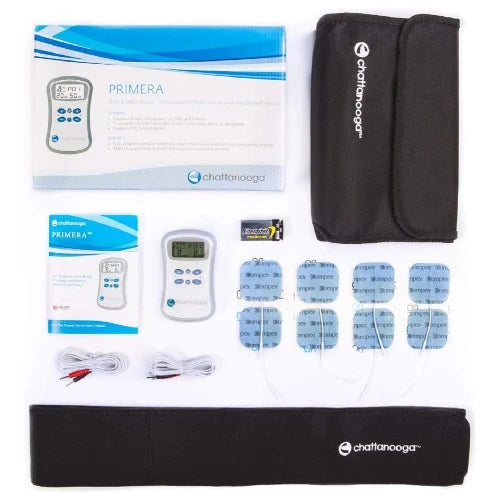

What's Included:

• Primera™ TENS/NMES unit
• Carrying case
• 9-volt battery
• Lead wires
• Electrodes
• Electrode positioning belt for the lower back
• User's manual

Contraindications & Important Safety Information

• Do not use the Primera during pregnancy or suspected pregnancy.
• Do not use with demand-type cardiac pacemakers, defibrillators, or other implanted metallic or electronic devices.
• Do not apply stimulation over the carotid sinus region, neck, mouth, head, eyes, heart, or chest.
• The device should not be applied where there is a tendency to hemorrhage following acute trauma or fracture, following surgery when muscle contraction could interfere with healing, over areas lacking normal sensation, or over swollen, infected, or inflamed areas or skin eruptions.
• The manufacturer's instructions also identify epilepsy among the contraindicated medical conditions. Always read the complete instruction manual, warnings, precautions, electrode-placement guidance, and contraindications before use.

Dimensions: 1.2" x 4" x 2.3"

Weight: 2 lbs

UPC: 888912373852

Warranty

The Chattanooga Primera is backed by a two-year manufacturer's limited warranty to the original purchaser covering defects in material, components, and workmanship from the date of purchase. Batteries, lead wires, the garment/electrode-positioning belt, and electrodes are considered consumable items and are not covered by the manufacturer's warranty.

***Note: Chattanooga Primera TENS/NMES Complete may only be returned if the product has NOT been used. Used TENS/NMES devices may not be returned due to sanitary health reasons set by the FDA. If you are attempting to return the device due to defect or malfunction with performance, this would go through the warranty and we ask you to please contact us for a warranty claim.
